MT-VIKI metal 5 port hdmi switch 5x1 support 3d with IR and push button, plug and play support 1080p HDCP MT-SW501-MH
Model No: MT-SW501-MH
Brief Introduction:
The mini metal-housing 5-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.
2.Product Feature
- Allows up to three HDMI A/V sources to be connected to one HDMI display
- Switch between A/V sources using remote control or front panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA (1920x1200)
- Supports Dolby True HD and DTS HD Master Audio
- Plug-and-play – no software installation required
- DDC Compatible
- HDMI (3D, Deep Color)
- HDCP compatible
- Front-Panel LED for port and power status
- Easy and affordable way to add three HDMI inputs to your home theater system
- No power adapter required
3.Product Specification
| Video Input | Interface | 5 x HDMI Type A Female (Black) | ||||
| Impedance | 100 Ω | |||||
| Max. Distance | 1.8 m | |||||
| Video Output | Interface | 1 x HDMI Type A Female (Black) | ||||
| Impedance | 100Ω | |||||
| Video | Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | ||||
| Max. Pixel Clock | 225 MHz | |||||
| Compliance | HDMI (3D, Deep Color) | |||||
| HDCP Compatible | ||||||
| Max. Resolution | Up to 1080p | |||||
| Max. Distance | Up to 15 m | |||||
| Audio | Input | 5 x HDMI Type A Female (Black) | ||||
| Output | 1 x HDMI Type A Female (Black) | |||||
| Control | IR | 1 x Mini Stereo Jack Female (Black) | ||||
| Power | Connector: 1 x DC Jack | |||||
| Consumption: 5 VDC, 3W | ||||||
| Environment | Operating Temp. | -45- 75°C | ||||
| Storage Temp. | 5%-90% | |||||
| Humidity | 5-90% RH, Non-Condensing | |||||
| Housing | Plastic | |||||
| Weight | 0.07 kg | |||||
| Dimensions | 9.60 x 5.12 x 2.24 cm | |||||
| (L x W x H) | ||||||
| Carton Lot | 40 pcs | |||||

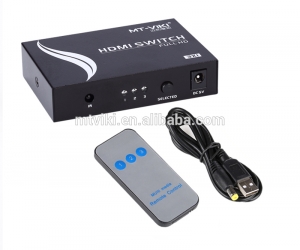

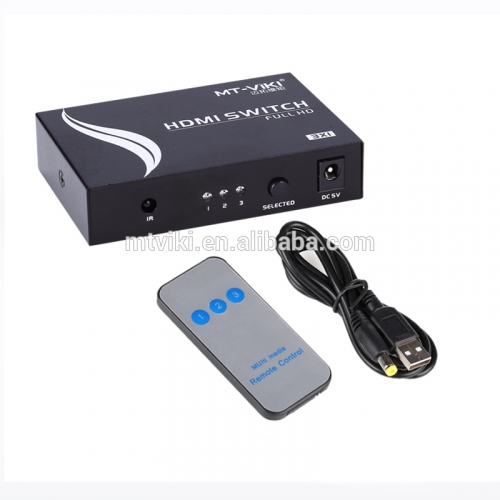

4.Product Image
Connection Diagram
We provide 3 kind of packaging for you to choose :
<1> Chinese packaging with our logo
<2> English packaging without logo
<3> English packaging with buyer's logo
