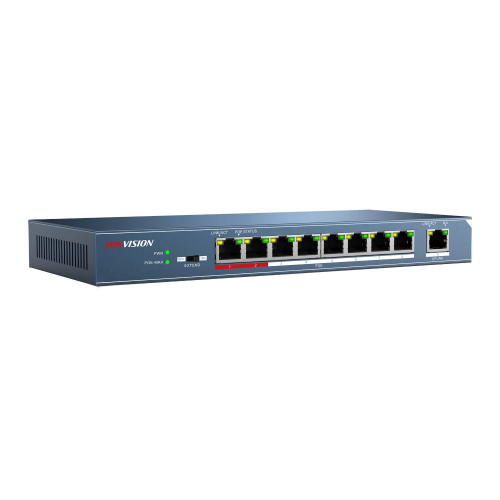

Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch
Location: Jatra-Bari-Dhaka
Rate this product!
Specification
| HARDWARE FEATURES | ||
| Interface | 9 x 10/100 Base-TX Ethernet ports | |
| Power Supply | 51 V DC, 1.25 A | |
| Main Feature | ||
| Port | 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port | |
| MAC Address Table | 2 K | |
| Environment | Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F) Operating Humidity: 5% to 95% (no condensation) |
|
| Manufacture Warranty | ||
| Warranty | 1 year | |
Key Features
- Model: DS-3E0109P-E/M(B)
- Port Number: 8 × 100 Mbps PoE, 1 × 100 Mbps Ethernet
- Port Type: RJ45, full duplex, MDI/MDI-X adaptive
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.339 Mpps
Description
Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch
The Hikvision DS-3E0109P-E/M(B) is a layer 2 Unmanaged 100M PoE switch. The power supply line can be located up to 250 meters away. When linked to the high priority ports, it also supports the prior and reliable transmission of the significant surveillance area video. When the power supply reaches its maximum capacity, Hikvision 8 POE ports intelligently manage the power supply. 300 meters separate the IPCs from the Hikvision DS-3E0109P-E/M(B) PoE Switch. 8 100 Mbps PoE ports, 1 100 Mbps ethernet port, RJ45 port, full-duplex, MDI/MDI-X adaptive, 30 W port power per port, PoE power budget, 60 W switching capacity, and 1.339 Mbps packet forwarding rate. 48 V DC. The Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch offers Ethernet PoE power supply and extend mode based on wirespeed forwarding.
