4x1 HDMI Quad Multi-Viewer, NEWPOWER HDMI Switcher 4 Ports with Seamless Switch and IR Remote Support 1080P 60HZ-White

 4x1 HDMI Quad Multi-Viewer, NEWPOWER HDMI Switcher 4 Ports with Seamless Switch and IR Remote Support 1080P 60HZ-White

• Support 4HDMI input, 1 HDMI output
• Support 4 channels HDMI signal screen segmentation
• Support 4 channels HDMI signal seamless switching
• Support highest resolution up to 1080P/60Hz
• Support IR control
• Compatible HDMI1.3a, HDCP1.2, input compatible DVI1.0 version
• Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on
• Support audio output format: PCM2
• Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres
• DC12V/2A power adapter

HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.  It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button and IR control. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

Product interface pictures

1：  HDMI OUT ---HDMI output

2：  HDMI IN1-4 ---HDMI input 1 to input 4

3：  DC/12V ---DC12V power input

4：  POWER---Power indicator

5：  AUDIO---Audio mode switching

6：  VIDEO---Video mode switching

7：  IR---IR receive

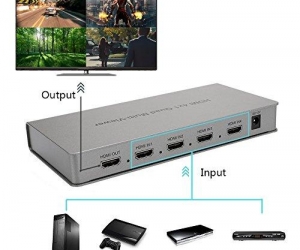

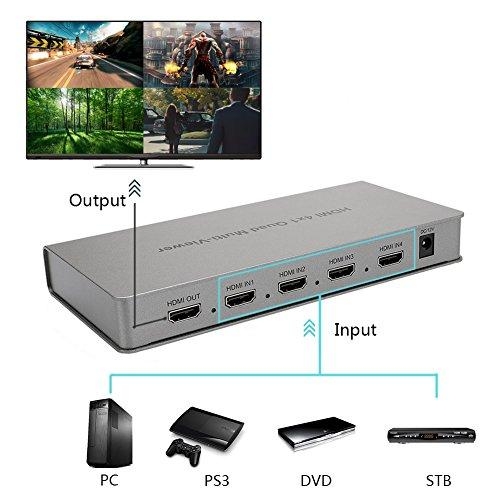

Connection diagram

Note:

AUDIO---Audio mode switching

VIDEO---Video mode switching

Three modes for switching:

MODE1: Switching IN1-IN4, to choose the audio output

MODE2: Switching IN1-IN4, the audio output is the same as the audio of the main interface.

MODE3: IN1-IN4, the 4 channels HDMI signal seamless switching
