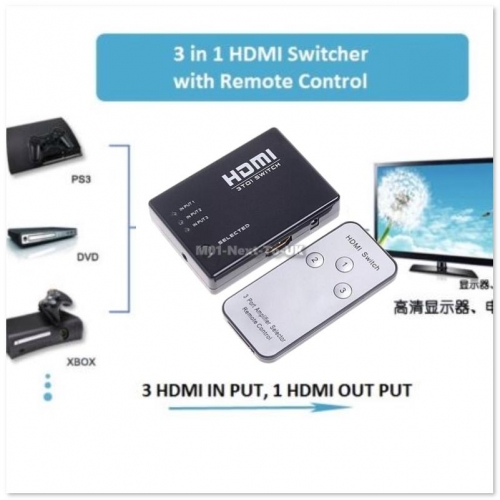

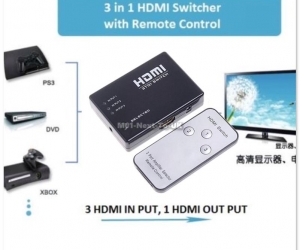

HDMI switch 3x1 with IR remote control,3in 1 out HDMI switcher Full 3D, 4kx2k, 1080P

Rate this product!

Tk. 1,200 *, Product ID: 51083
*Warrenty : 1 YEAR
*Last Updated On : 9 months ago

01818269935 //01772332000
Seller:

IP Surveillance System BD

Location: Elephant-Road-Dhaka

Address: ECOM INTERNATIONAL,7/20A 8/47 Eastern Plaza, lifter 7 Hatirpu, Dhaka 1205

Description

HDMI switch 3x1 with IR remote control,3in 1 out HDMI switcher Full 3D, 4kx2k, 1080P
Model: HD-SW301S
3 inputs 1 output

Support HDMI 1.3b, Full HD 1080P





Ultra-High performance HDMI Switcher



This is akind of high performance mini HDMI Switcher. It is compatiable well for HD-DVD, Sky-HD, STV, PS3, Xbox 360 etc. The multiple resolutions can be up to 1080p. This kind of HDMI Amplifier Switcher not only has key-press-switching function, but also has IR remote contol and interlligent function. That is to say, as soon as power supply of the source equipment is switched, this switcher will respond automatically. Standardly equipped with infrared-ray receiver extender.





Intelligent function



1) When supplied with power, this switcher will select the power-on source device depending on the sequence automatically (input1>input2>input3)



2) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.



3)Once the source device is turned off or plugged out, the switcher will automatically select the next power-on source depending on the sequence automatically(input1>input2>input3)





Note:



1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.



2) When plugged in or out, this switcher is completely intelligent.





 high quality HDMI switch 3x1 with IR remote control,3in 1 out HDMI switcher Full 3D, 4kx2k, 1080P

This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:



Multifunctional on switching : intelligent or mechanical



IR extender receiver (included)



IR remote(included)



Supports highest video resolution 1080p.



Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.



Supports 12bit per channel (36bit all channel) deep color.



HDCP pass-through.



Supports uncompressed audio such as LPCM.



Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby  True HD).



Support 3D all format, including 1080p(23.98/24Hz), 720p(59.94/60Hz/50Hz), bandwidth up to 250MHz.



Support HDMI 1.3b




Full HD 1080P




Support 12-bit deep color




High Performance up to 2.5Gbps




Supports 25m HDMI cable on both ends of the switcher




No need for power (power supply is optional; if the input equipment is not standard, power needed)


HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.





high quality HDMI switch 3x1 with IR remote control,3in 1 out HDMI switcher Full 3D, 4kx2k, 1080P

Signal Inputs/Output



Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1080p

Output Video

HDMI

Operating Frequency



Vertical Frequency Range

50/60Hz

Video Amplifier Bandwidth

2.5Gbps/250MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(L-W-H)

80×58×18mm

Weight(Net)

55g

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0 °C to +70°C

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10°C to +80°C

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement



External Power Supply

No power needed for standard product

Power consu

mption (Max)

5W

Accessories Adapter



IR extenderreceiver



IR remote



User Manual

English Version
