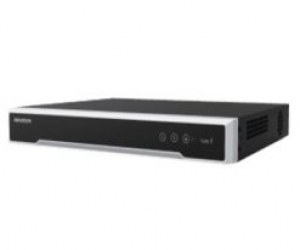

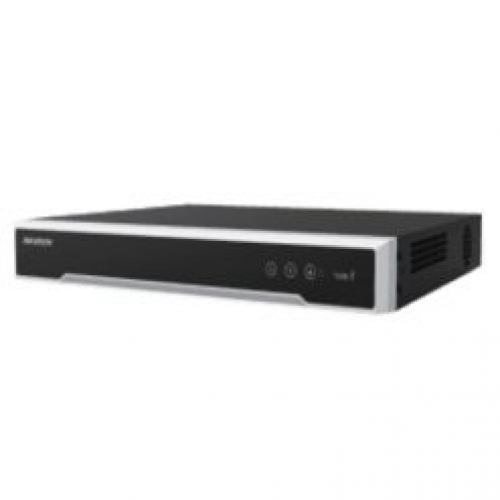

Hikvision DS-7632NI-K2 32 Channel Embedded 4K NVR
Location: Jatra-Bari-Dhaka
Rate this product!
Specification
| Audio and Video | ||
| IP Camera Input | IP video input: 16-ch | |
| Two-Way Talk | Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| Recording | ||
| Resolution | Recording Resolution: Up to 5MP\ Synchronous Playback: Up to 16-ch synchronous playback at 4CIF resolution |
|
| Record Rate | Up to 5 MP | |
| Video Detection And Alarm | ||
| Video Detection | IP Video Input: 16-ch (8-ch@720P, 6-ch@1080P) | |
| Alarm Input | Alarm Input/Output: Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8) Alarm Input/Output: Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8) |
|
| Playback And Backup | ||
| Sync Playback | Up to 16-ch synchronous playback at 4CIF resolution | |
| Search Mode | Yes | |
| Playback Function | Yes | |
| Backup Mode | Yes | |
| Third Party Support | ||
| Third Party Support | Third-party network cameras supported | |
| Network | ||
| Interface | Network Interface: 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface PoE Switch (Built In): (-16P) 16 independent 100 Mbps PoE network interfaces Power over Ethernet: (-16P) 16 independent 100 Mbps PoE network interfaces\ Serial Interface: RS-232 and RS-485 |
|
| Ethernet Port | Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces |
|
| PoE | PoE Switch (Built In) (-16P) 16 independent 100 Mbps PoE network interfaces Power Consumption ≤ 20W (without hard disk, DVD-R/W or PoE) Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces |
|
| Network Function | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface (-16P) 16 independent 100 Mbps PoE network interfaces (-16P) 16 independent 100 Mbps PoE network interfaces |
|
| Storage | ||
| Internal HDD | Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD) | |
| Auxiliary Interface | ||
| USB | 2 × USB 2.0 + 1 × USB 3.0 | |
| RS232 | Yes | |
| RS485 | Yes | |
| Power | ||
| Power Supply | Max. Power 200W Power supply 100 ~ 240 VAC | |
| Power Consumption | ≤ 20W (without hard disk, DVD-R/W or PoE) | |
| Component Environment | ||
| Operational Conditions | -10ºC ~ + 55ºC (14ºF ~ 131ºF) Working humidity 10 % ~ 90 % | |
| Storage Conditions | Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD) | |
| Construction | ||
| Dimensions | 445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8") | |
| Net Weight | ≤ 4 Kg (without hard disk) | |
Key Features
- Model: DS-7632NI-K2 32 ch
- Up to 32 IP camera Channel
- Up to 5 Megapixels resolution
- IP video input: 16-ch
- Up to 4 SATA interfaces
Description
Hikvision DS-7632NI-K2 32 channel NVR
Hikvision DS-7632NI-K2 is a 32 channel NVR from Hikvision. It comes with Third-party network cameras supported Up to 5 Megapixels resolution recording, HDMI and VGA output at up to 1920×1080P resolution with 16/32-ch network cameras which can be connected with 160M incoming bandwidth. This NVR supports up to 4 SATA interfaces with supporting network detection, including network delay, packet loss, etc. This NVR also has Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8), 1-ch, RCA (Linear, 1kΩ) with (-16P) 16 independent 100 Mbps PoE network interfaces, ≤ 20W (without hard disk, DVD-R/W or PoE) power consumptuion and (-16P) 16 independent 100 Mbps PoE network interfaces, that provides you excellent performance. It supports TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS Network protocols. It has 4HDD UP TO 6TB Each HDD and for Compression Format it supports H.265, H.264, MPEG4 codecs. Hikvision DS-7632NI-K2 32 channel NVR offers 01 years of Warranty.
