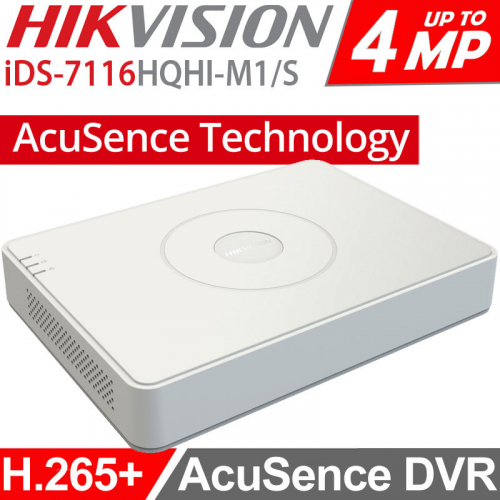

Hikvision iDS-7116HQHI-M1-S 16 Channel HD Mini 1U H.265 AcuSense DVR
Location: Jatra-Bari-Dhaka
Rate this product!
Brand
Hikvision
Model
Hikvision iDS-7116HQHI-M1-S
Type
DVR
Video Input Channel (BNC)
16 Channel BNC
Video Compression/Format
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Output (VGA)
1 channel, Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (HDMI)
1 channel., Resolution: 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (BNC)
16 channel BNC interface (1.0 Vp-p, 75 ohm), supporting coaxitron connection
Video Recording Res.
1920 x 1080
Max. Video Recording Res.
2160p
Video Bit Rate
32 Kbps to 6 Mbps
IP Video Input
2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution (Support H.265+/H.265/H.264+/H.264 IP cameras)
Analog & HD-TVI Video Input
3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
Audio Input Channel (RCA)
1 Channel, RCA (2.0 Vp-p, 1 K ohm)
Audio Compression
G.711u
Audio Output Channel
1 Channel, RCA (Linear, 1 K ohm)
Two way Audio
1 channel Input, RCA (2.0 Vp-p, 1 K ohm)
Audio Bit Rate
64 Kbps
Frame Rate
Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps, Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Stream Type
Main Stream, Sub steram
Dual Stream Support
Yes
Synchronous Playback
16 Channel
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
10 TB
Max. Storage Support
10TB
eSATA
No
Network Interface (RJ45)
1 RJ-45 10 /100 /1000Mbps
USB Port
2 x USB 2.0
POE Interface
No
Remote Connections
128
CVBS Input
Yes
Incoming Bandwidth
96Mbps
Outgoing Bandwidth
96Mbps
Video Detection
Motion detection
Power Supply
12 VDC, 1.9 A
Power Consumption
<=15 W
Max. Power
15 W
Dimensions
285 x 210 x 45mm
Weight (Kg)
1 kg
Feature
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras, Support 4-ch line crossing detection and intrusion detection, H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs.
Others
Max. Video Recording Res.:3840 x 2160, Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights, Quick search by object or event type is supported, Facial Detection and Capture Face picture detection, face picture search, Encoding Resolution: When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF.
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
Quick Overview
- Dual Stream Support - Yes
- Max. Storage Support - 10TB
- Video Recording Res. - 1920 x 1080
- Number HDD Interface (SATA) - 1 SATA
16-ch 1080p Mini 1U H.265 AcuSense DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 24 network cameras can be connected.
