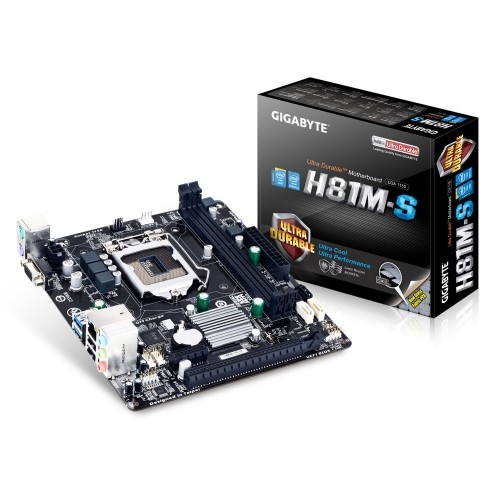

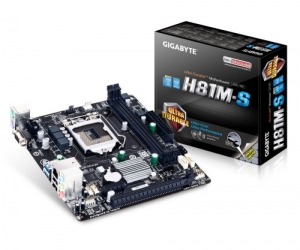

Gigabyte Genuine H81M-S 4th Gen Intel Motherboard
Location: Jatra-Bari-Dhaka
Rate this product!
Specification:
| Basic Information | ||
| Supported CPU | Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package | |
| Chipset | Intel H81 Express Chipset | |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 19.0cm x 17.0cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot |
|
| Memory | ||
| Type | Dual Channel Architecture | |
| Slots | 2 x DDR3 DIMM sockets | |
| Supported Memory | Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 16 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 | |
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| USB (s) | 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port |
|
| Supported Storage | 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3) |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub port | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
| Others | ||
| Special Features | Support for Q-Flash Support for Xpress Install Support for APP Center @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge |
|
Description :
Gigabyte H81M-S 4th Gen Intel Motherboard
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own. The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel Core processors and Intel H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. Humidity can play havoc on a motherboard's circuitry.
Features
- Model: Gigabyte H81M-S
- Supports 4th Generation Intel Core processors
- LAN with high ESD Protection
- Gigabyte Ultra Durable Technology
- Solid capacitors for CPU VRM design
