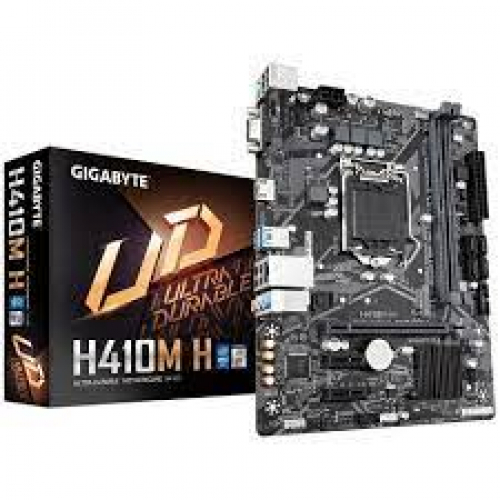

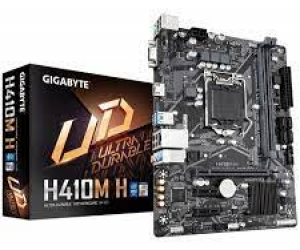

Gigabyte Genuine H410M H 10th Gen Micro ATX Motherboard

Tk. 8,100 negotiable*,
Brand : GIGABYTE , Model : Genuine H410M H 10th Gen Micro ATX Mother, *Warrenty : 03Years Warranty Without Burn/Broken, Condition : Brand New
*Last Updated On : 2 years ago
*Status : In Stock, Home delivery service? : YES

01678761887
Seller:
NIIT COMPUTER WEST JATRABARI

NIIT COMPUTER WEST JATRABARI

Location: Jatra-Bari-Dhaka

Rate this product!

Description

Specification

Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset Intel H410 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory
Type Dual-channel architecture
Slots 2 x DDR4 DIMM
Supported Memory Intel® Core™ i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/ i3/ Pentium /Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Maximum Memory 64 GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Max Shared Memory 512MB
Connector & Ports
HDMI 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Support for Windows 10 64-bit
Features

Key Features

  • Model: Gigabyte H410M H
  • Intel Socket LGA1200 for 10th Gen Processors
  • 8-Channel HD Audio
  • Smart Fan 5 features
  • Anti-Sulfur Resistors Design

Description

Gigabyte H410M H 10th Gen Micro ATX Motherboard

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuits and system malfunction caused by humid and damp conditions. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance. The BIOS is essential for users during the initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Others
SHOP NAME: NIIT COMPUTER JATRABARI (NAYAN), ADDRESS: 45/1, WEST JATRABARI (NEARBY JOSNA HOTEL/GOOGLE SEARCH SUBORNA DENTAL NEAR MY SHOWROOM), DHAKA-1204, CONTACT: MD. ABDUR RAHMAN (NAYAN),অল বাংলাদেশ প্রোডাক্ট ডেলিভারি দেওয়া হয় । ফোন নাম্বার : 01678761887 OTHERS CONTACT(24-HOURS):- FACEBOOK/IMO/VIBER/INSTAGRAM/WHAT SUP/SNAP CHAT/ WE CHAT- MD.ABDUR RAHMAN (NAYAN) INSIDE DHAKA AVAILABLE NOW HOME/OFFICE DELIVERY(24/48/72-HOURS) ON TERMS & OUTSIDE DHAKA DELIVERY IN S.A/JANANI/RAINBOW/SUDHORBAN ETC PARIBAHAN POSSIBLE (ALL ICT PRODUCT PRICE ALWAYS CHANGED) CORONA KALIN ER JONNO + KICHU OSHADHU CUSTOMAR ER KARONE PRODUCT ER KICHU SONKKHON CASH NIYE PRODUCT CHARCHI, JEITA PARCEL PARIBAHON SERVICE CASH NEBAR JONNO EBONG KICHU CUSTOMAR PRODUCT ORDER DIYE NA NEBAR JONNO 200/300TK BKASH ADVANCE NICCHI EI JONNE. CALL ER POR AMADER THEKE JE SMS JAI TA SUDU POSSITIVE CUSTOMAR ER PRODUCT CONFIRM ER JONNO, ECHARA KONO NEGETIVE ER JONNO NOHE. THANK YOU.
নোটিশ: আপনার পণ্য হাতে পাওয়ার আগে এবং যথাযথ নিশ্চিতকরণের আগে কোনো অপরিচিত/অযাচাইকৃত বিক্রেতার কাছে টাকা পাঠাবেন না।
