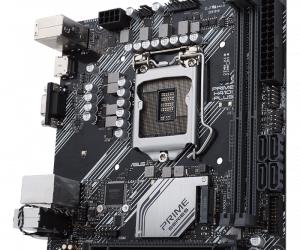

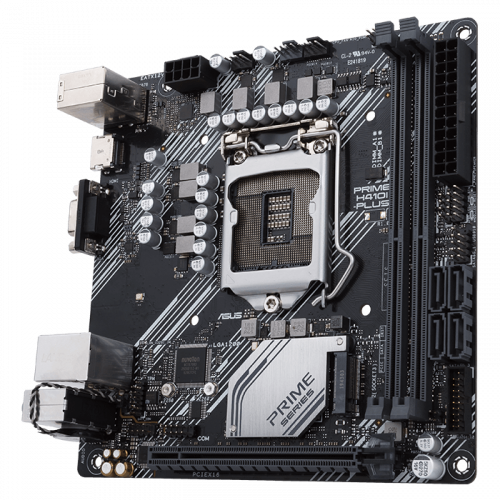

Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
Location: Jatra-Bari-Dhaka
Rate this product!
Specification:
| Basic Information | ||
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H410 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) | |
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0/2.0 x16 | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) | |
| Memory | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 2 x DIMM | |
| Supported Memory | Supports 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Mamory | 64GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor- Intel UHD Graphics support 1 x HDMI 1.4b 1 x D-Sub |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4b | |
| USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 2 x USB 2.0 port(s) |
|
| LAN Port (s) | Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard | |
| Supported Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports Intel H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s) |
|
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
|
| D-Sub (s) | 1 x D-Sub | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Description :
Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors for daily users and all-round builders use. Combining a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H410 provides a wealth of options for performance tuning via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime H410 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Prime H410 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. A H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime H410 is geared to cater to the demands of these high-core count CPUs. A VRM with 4+1+1 DrMOS power stages delivers the power and efficiency that the latest Intel processors demand. Prime H410 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.
Features
- Model: Asus Prime H410I-Plus
- Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
- Enhanced power solution
- ASUS OptiMem II
- 5X Protection III
