Wifi Circuit Breaker/Smart Switch overload,short circuit protection for Smart home tuya app

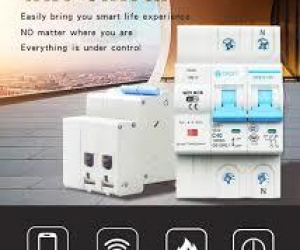

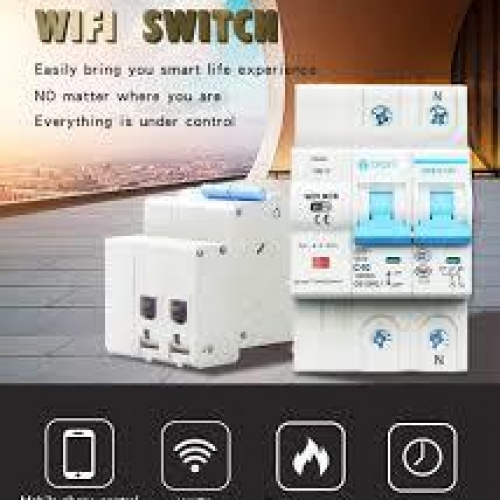

WiFi Smart Circuit Breaker Switch Smart Home Automation Overload Short Circuit Voice Control with Amazon Alexa Google home
by Moes

Main Features:
        1.Use with convenience of more advantages:Smart Circuit Breaker can intelligently control multiple household appliances in a smarter way than ever.After pairing it to your devices,you are able to enjoy most smart features of the breaker.(Note:when you are operating the handle to turn on or off,it will remain about 3 seconds before turning off again.) Besides,it is suitable for 50Hz,230V/400V/0-100A circuit which contains various advantages about protection,like overload and short circuit,over voltage and under voltage protection.
        2.Hands-Free Voice Control:Compatible with Amazon Alexa and Google Home for easy voice control,providing your smart life with much more convenience.Freely control connected appliances via voice when your hands are not free.
        3.Wireless Remote Control:Conveniently control your connected devices with the free mobile "Smart Life"phone App no matter where you are.(Compatible with Android&iOS.)Control your appliances in advance when you are away from home.
        4.Timer Setting:Take full control of your connected appliances intelligently with the timer feature on your App,which owns a 5+1+1 day programmable schedule to allow you to plan the exact time in advance to turn your devices on or off automatically.Auto on/off feature offers you countdown option of 1 min/5mins/30mins/1hour etc.Real time monitoring function that you can check the status of devices connected on the smart circuit breaker.
        5.Family Sharing: Share the control with your family members or friends for maximum convenience.Support multiple phones to control one breaker or one phone to control multiple breakers at the same time.

Attention:
8226.This product only supports above input, down output.
8226.Then don't reverse, otherwise the handle can't push up.
8226.Some customers have a distribution box at home, the input line is below, and the output is above.This situation should turn our circuit breaker upside down.

Parameter

Standard:GB10963.1;IEC60898-1

Rated Voltage:AC 230V 1P 2P/ AC 400V 3P 4P

Frequency:50Hz

Pole Number:1P 2P 3P 4P

Anti-pollution Grade:2

Protection Grade:IP20

Installation Category:II,III

Ambient Temperature:-25℃~+65℃

Frame Grade Rated Current:125A

Rated Current:32A,40A,63A,80A,100A,125A

Instantaneous Tripping Characteristic:C

Rated Short Circuit Breaking Capacity:6kA

Rated Impact Withstand Voltage:6kV

Mechanism Life:>10000times

Electrical Life:>6000times

Package Listing

1*circuit breaker

1*user guide
