DC 52V 1.5A Power Supply Adapter

Tk. 1,500 fixed*
Condition : Brand New
*Last Updated On : 1 year ago
*Status : In Stock

01772332000 , 02-47444040, 224461394
Seller:
ISSBD

ISSBD

Location: Elephant-Road-Dhaka

Rate this product!

Description

DC 52V 1.5A POE Swtch Power Supply Adapter (P512500D)

This type POE Power Supply Adapter is designed by our R&D team, Input voltage AC 110V-240V 50/60Hz, output voltage is DC52V, power is 78W, cooperated with POE switch, can be supply power to POE switch.

Specifications:

Product POE Switch Application Power Supply Adapter
Model Power Supply Adapter P512500D
Input Voltage AC 110V-240V 50/60Hz
Output Voltage DC52V
Output voltage accuracy ≤±2% Vo
Output Current 1500mA
Output Power 78W
Short circuit protection It will be a burp protection after short circuit, the automatic recovery appeared after the short circuit been removed
Over current protection ≤110%-200%I0, it will be a burp protection after over current protection, over current protection under the condition of the state to reduce the load can automatically resume normal output
Over Voltage Protection Null
Idle standby power consumption ≤1.5W
Efficiency ≥80%
Working frequency 65KHz
Ripple and noise ≤240mV
Surge current <50A
AC leakage current <10mA
High pressure Input -output 1.5KV,input -housing 1.5KV
Insulation resistance >=50MΩ
Lightning strike Null
Standard GB8898-2011 GB13837-2012 GB17625.1-2012
Input 3-PIN AC
Working  environment  0ºC~+40ºC
Weight 0.24kg
Dimension 127*52*32mm

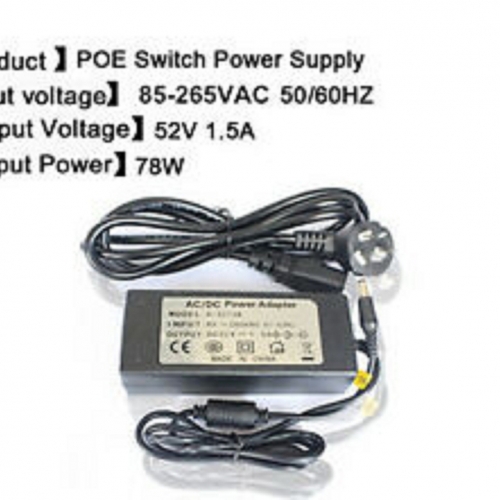

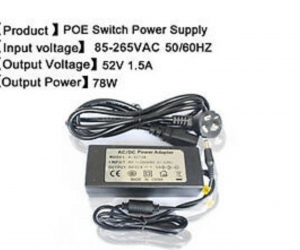

Production Display
DC 52V 1.5A Poe Swtch Power Supply Adapter (P512500D)
