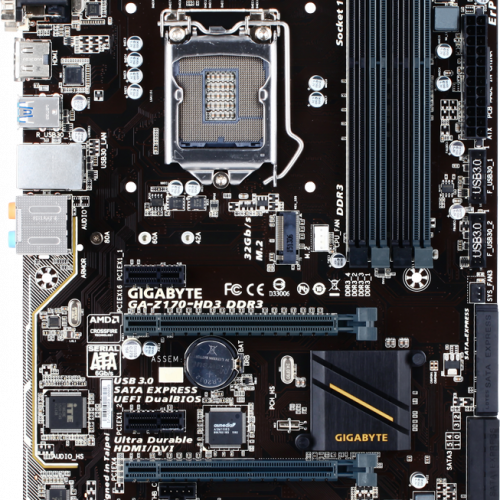

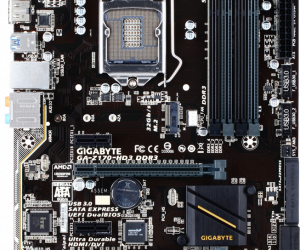

Gigabyte GA-Z170-HD3 DDR3 Desktop Motherboard

Tk. 8,700 negotiable*,
Brand : GIGABYTE , Model : GA-Z170-HD3 DDR3 Desktop Motherboard, *Warrenty : 03 Year Replacemnt Without Burn & Broken, Condition : Brand New
*Last Updated On : 1 month ago
*Status : In Stock, Home delivery service? : YES

01678761887
Seller:
NIIT COMPUTER WEST JATRABARI

NIIT COMPUTER WEST JATRABARI

Location: Jatra-Bari-Dhaka

Rate this product!

Description

Back IO

Audio


  • 6x Analog Audio Jack

Misc


  • 1x PS/2

Network


  • 1x RJ-45

USB


  • 2x USB 2 Type-A
  • 4x USB 3 Gen 1 Type-A

Video


  • 1x DVI-D
  • 1x HDMI Out
  • 1x VGA

Internal Connections

Audio


  • 1x SPDIF Out Header

Fans


  • 4x 4-pin Fan Header

Misc


  • 1x Parallel Header
  • 1x Serial Header
  • 1x TPM Header
  • 1x Thunderbolt 5-pin Header

Power


  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power

Storage


  • 3x SATA Express
  • 6x SATA3

USB


  • 2x USB 2 Header
  • 2x USB 3 Gen 1 Header

Misc. Information

PCB Color Black
Other Colors
  • Black
  • Gray

Network

Wired

Amount Chip Speed For IPMI
1x Realtek [Unknown] 1000 Mbit No



Expansion Slots

Slots


  • 1x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x4
  • 2x PCI-E 3.0 x1 @ x1
  • 2x PCI 5V @ 32-bit

Crossfire & SLI

AMD Crossfire Yes
Nvidia SLI No

Audio

Audiochip Realtek ALC887
Audio Channels 7.1



Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR3
Slot Type 240-pin DIMM
Maximum Speed 3200 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No



M.2 Slots

M.2 Connections

Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,



Features

General Information

Manufacturer Gigabyte
Year 2015
Socket(s) 1x LGA 1151
Form Factor ATX
199 x 305 mm
Chipset Intel Z170
Product Series Gigabyte Ultra Durable

Others
