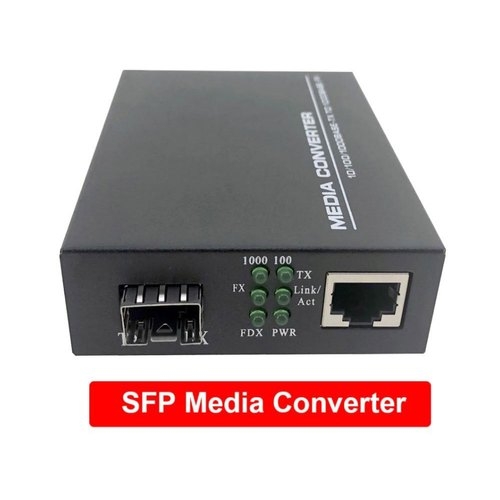

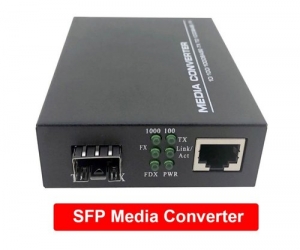

SFP Media Converter
Maximum Forwarding Rate 10 Mbps: 14, 880 pps / 100 Mbps: 148,800 pps / 1000 Mbps: 1,488,000 pps
Forwarding mode Cut-Through
Packet Buffer Memory 256 Kbits
Switching Capacity 2 Gbps
Multi-speed Copper Port 10BASE-T, 100BASE-TX and 1000BASE-T through RJ-45 interface
Multi-speed fiber Port 100BASE-FX and 1000BASE-X using SFP interface
Multimode or single-mode fiber Use hot-swappable SFPs to match appropriate fiber type
Form Factor Desktop
External Power Adapter Switching 5V/1A Level V Power Adapter, ErP compliant
LAN 1 x 10/100/1000 Mbps port
Product details of SFP Media Converter
- Capacity:Without SFP Ethernet has characteristics of high transfer speed and economic benefit.
- It can provide a best solution for the operators and enterprises to solve the problem of long-distance broad band transfers by working through the optical fibers which have long-distance transfers characteristics.Ethernet Optical Converter can transform the 10/100/1000Base?TX Ethernet into 1000Base-FX optical signal and transfer the signal in the optical fibers with long-distant transmission.
- Its Ethernet interface of twisted pairs has 10/100/1000Mb/s transfer speed and full-duplex or half-duplex self-accommodate ability.
- It?s no need to do any enactment and adjustment.
Specifications of SFP Media Converter
- Brand
No Brand
- SKU
101310005_BD-1015290386
- Model
SFMC-GE-L
What’s in the box
1.Ethernet Media Converter 2.An AC-to-DC power-supply module(AC input 100~240V?DC output 5V/2A 3.An User Manual
