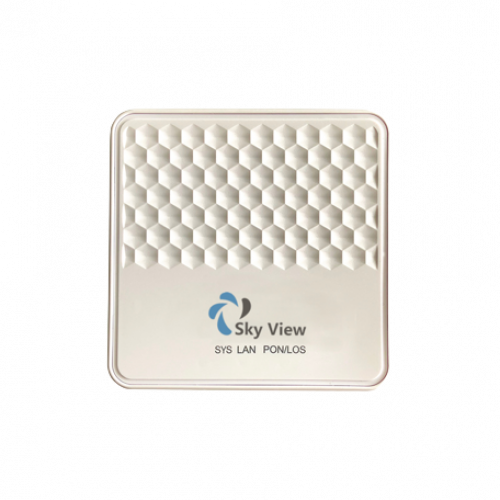

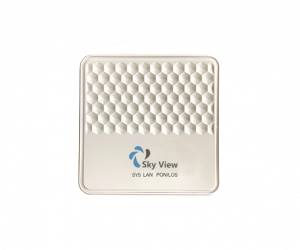

SkyView Epon ONU SV1351-1G PORT

Model : PTF1351
Product Description :

FIBERWAY PTF1351 is EPON 1GE Port HGU ONU. It is designed for meeting the multi- services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.

Features:

Ø ZTE chip with 32M RAM

Ø Compatible with popular EPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø Support port speed, support for storm suppression

Ø Support Telnet, CLI, OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrade

Technical parameters :

# Optical interface :- SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM

# Speed :- EPON: symmetric 1.25Gbps

# Operating condition :- Operating temp: -5 ~ +55 ℃

# Power supply :- DC 12V,0.5A adapter

# Dimension :- 86mm×85mm×25mm(L×W×H), 185*135*40(box)
