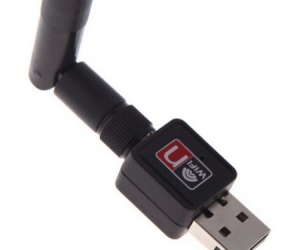

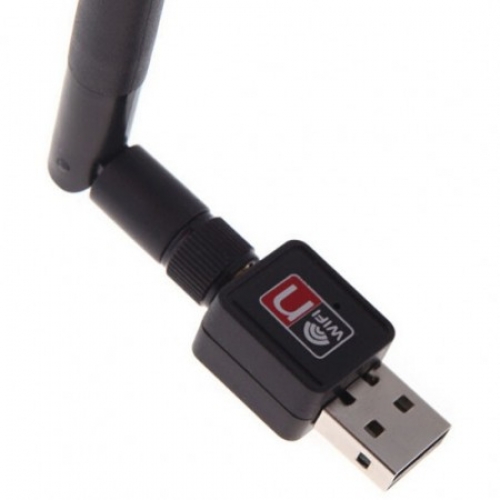

USB WiFi (802.11b/g/n) Module with Antenna
Location: Jatra-Bari-Dhaka
Rate this product!
Specifications
- Mini portable USB 2.0 design
- Wireless N speed up to 150Mbps, ideal for internet surfing and on-line gaming
- Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards
- Provides two work modes: Infrastructure and Ad-Hoc
- MIMO technology makes wireless transmission rates up to 150Mbps
- CCA technology enhances your signal stablility by automatically avoiding channel conflicts
- Quick secure setup, complies with WPS for worry free wireless security
- Wireless security encryption easily at a push Of QSS button
- Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions
- Supports WIN2K, XP, VISTA, WIN7, MAC, LINUX operating system
- Supports wireless roaming technology for high-efficient wireless connections
- Seamlessly compatible with 802.11b/g/n devices
- Chipset Ralink: RT5370
- Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency Band:2.4GHz ISM (Industrial Scientific Medical) Band
- Peak Throughput:150Mbps
- Channel:1--14 channels (Universal Domain Selection)
- Data Security 16/128-bit WEP Encryption WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES
- Support Operating System: Windows 2000, XP, Vista, Win7, Linux, MAC
- Host Interface: High speed USB2.0/1.1 Interface
- Antenna Gain: 2dBi
- Operating Temperature: 0ºC - 40ºC
- Storage Temperature: -20ºC - 75ºC
- Operating Humidity: 10% - 90% RH, (non condensing)
- Storage Humidity: 5% - 95% RH, (noncondensing)
- Package Size: 14.8 * 9.8 * 1.8cm
- Packed Weight: 36g
Make your Internet of Things device cable-free by adding super WiFi. Take advantage of the Raspberry Pi and Beagle Bone's USB port to add a low cost, but high-reliability wireless link. We tried half a dozen modules to find ones that work well with the Pi and Bone without the need of recompiling any kernels: its supported by the Bone's Angstrom installation that comes with each Bone as well as the Adafruit Occidentalis distribution. You'll have wireless Internet in 10 minutes! Works great with 802.11b/g/n networks.
When you don't need the small size of our Miniature or Stick-size WiFi adapter, this guy has a massive antenna for greater range!
If using with a Beagle Bone: Because of the high power required by WiFi, a 5V 2A power adapter is required to power both the Bone and WiFi. Flaky behavior and crashes may result if this is not followed! We have a tutorial for using this module with the Beagle Bone!
If using with a Raspberry Pi: The latest Wheezy distributions support this module out-of-the-box. Also, the Adafruit Occidentalis distribution has support built in. You may find that you need to have a powered hub to use this adapter, so if you're having power flakiness with your Pi, try a hub! Pi B+ / A+ / 2 should work without needing a hub.
