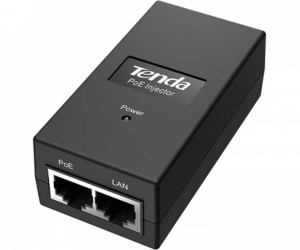

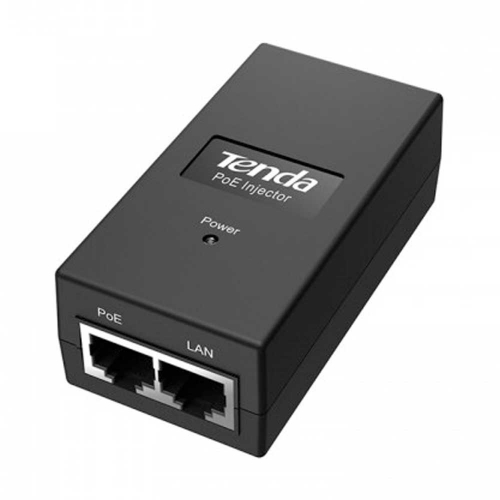

Tenda PoE15F 10/100Mbps PoE Injector
Location: Jatra-Bari-Dhaka
Rate this product!
PoE15F / Switch / 10/100Mbps PoE Injector
PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.
What it Does
The PoE injector PoE15F can realize synchronous delivery of device network data and power via one Ethernet cable (Cat.5 or better). The output power of per port is up to 15W, which can serve as an outlet for a PoE device (powering via RJ45 port). You can connect PoE15F to an IEEE 802.3af compliant PD, such as wireless AP, IP camera, IP phone, etc. In a sense, it is a good choice for you to reduce the installation cost and improve the network perfor.
Main Features
>> Delivers power and data through one Ethernet cable for easy network extension
>> Compatible with IEEE 802.3af compliant powered devices
>> PoE Port Delivers power up to 100 meters
>> Plug and Play, no configuration required
Features
Compatible with IEEE802.3, IEEE802.3u Standard
Support the powered devices compatible with IEEE802.3af Standard
Transmission range up to 100M
Power output can be matched automatically
Plug and play
Port
1 FE port
1 data&power output port supporting PoE
Power Output
15W（Max. 48VDC）
Indicator
Power
Dimension
84.5*44*29.8 mm. (3.32*1.73*1.17 in )(W*D*H)
Temperature
Operating Temperature: 0℃ ~ 45℃
Storage Temperature: -40℃ ~ 70℃
Humidity
Operation:10%~90% (noncondensing)
Storage:5%~90% (noncondensing)
