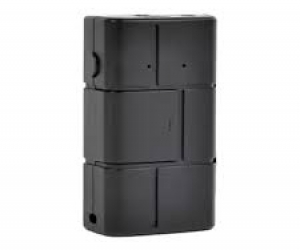

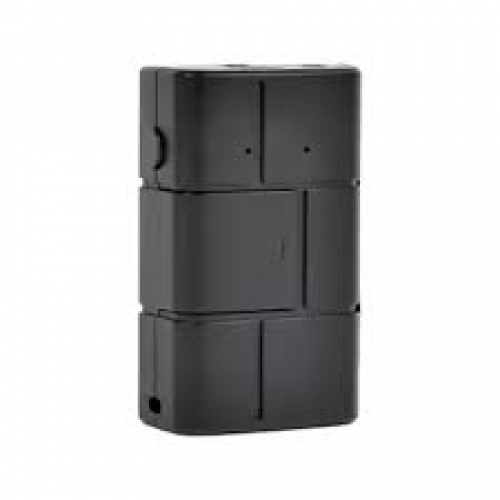

GSM/GPRS Mini GPS Tracker X9009 N96 SMS Real Time Listening Device with Camera Video Recorder for Auto Motorcycle Alarm

 GSM/GPRS Mini GPS Tracker X9009 N96 SMS Real Time Listening Device with Camera Video Recorder for Auto Motorcycle Alarm

• GSM frequency ranges: 850/900/1800/1900
• GPRS:Upload60, TCP/IP
• Working voltage: 3.4-4.2V DC
• Standby current:2.5mA
• Start sound-controlling current:30mA
• Speaking current:150mA
• GSM positioning time: 35s
• Working ambient temperature: -20 dEgree+70degree
• Working ambient humidity: 20%~80%RH
• Dimensions: 45 (L)* 26(W)* 16(H) mm

Package include:

1 X TrackerDevice(spy camera);

1 X USB Cable;

1 X User manual;

1 X Retail box.

Specifications:

LBS type: LBSTracker

Color: black

Quality: high

Keywords: GPS Tracker

Certification: CE CCC Rohs

Technical parameters:

GSM frequency ranges: 850/900/1800/1900

GPRS:Upload60, TCP/IP

Working voltage: 3.4-4.2V DC

Standby current:2.5mA

Start sound-controlling current:30mA

Speaking current:150mA

GSM positioning time: 35s

Working ambient temperature: -20 dEgree+70degree

Working ambient humidity: 20%~80%RH

Dimensions: 45 (L)* 26(W)* 16(H) mm

Warm prompt:

The instructions for the setting of parameters below shall be written in smallletter and shall adopt English punctuation marks. For all the instructions, thereply messages will be sent out. If the setting is successful, the message whichinforms the success of setting will be sent out; and on the contrary, the settingshall be repeated.

All the mobile phones are able for the checking of location. Other functionsshall be operated with the service center number.

Send out the relevant instructions and the terminal will send you the relevantmessage.

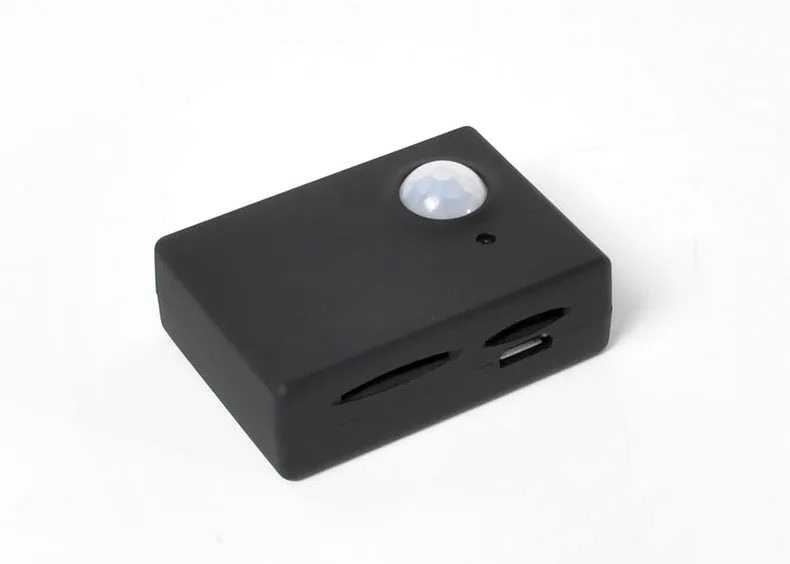

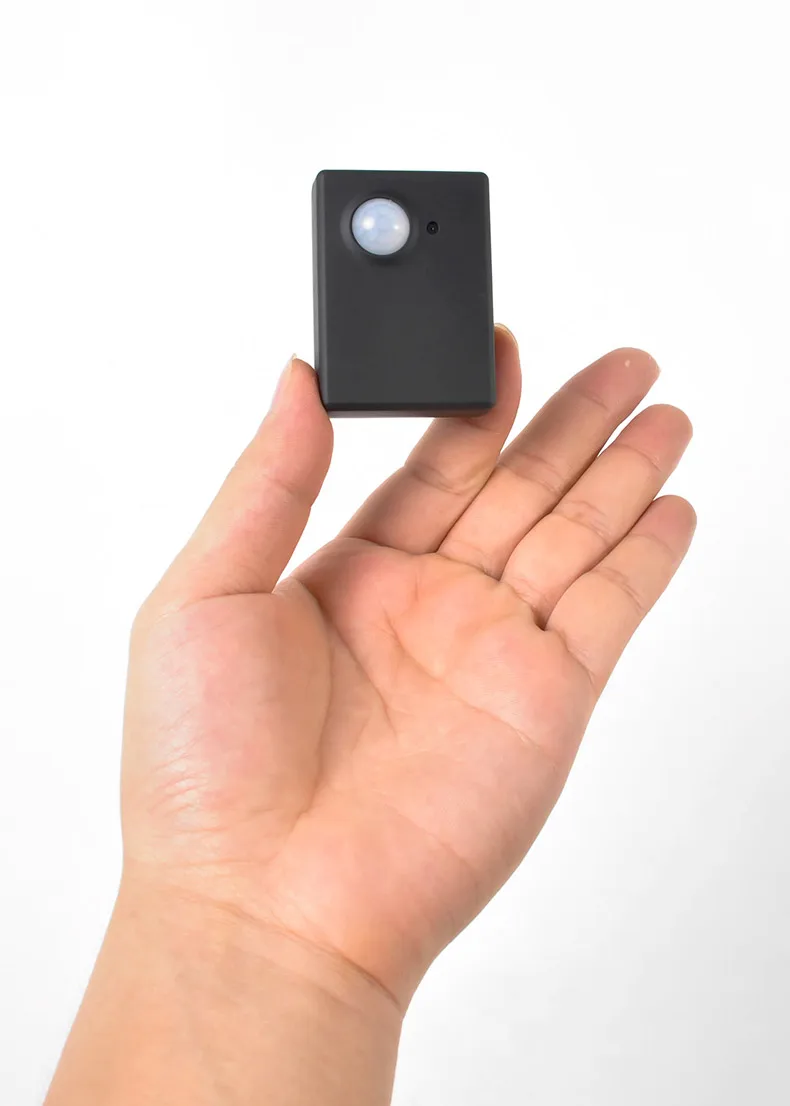

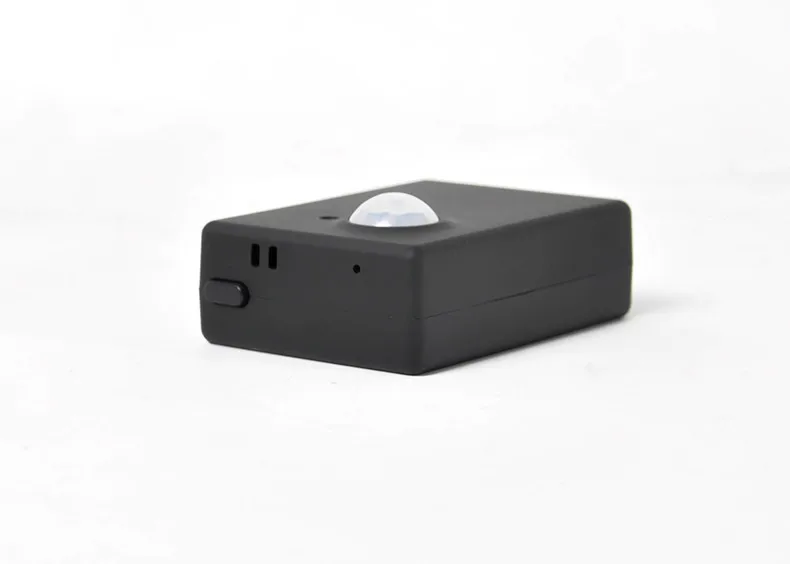

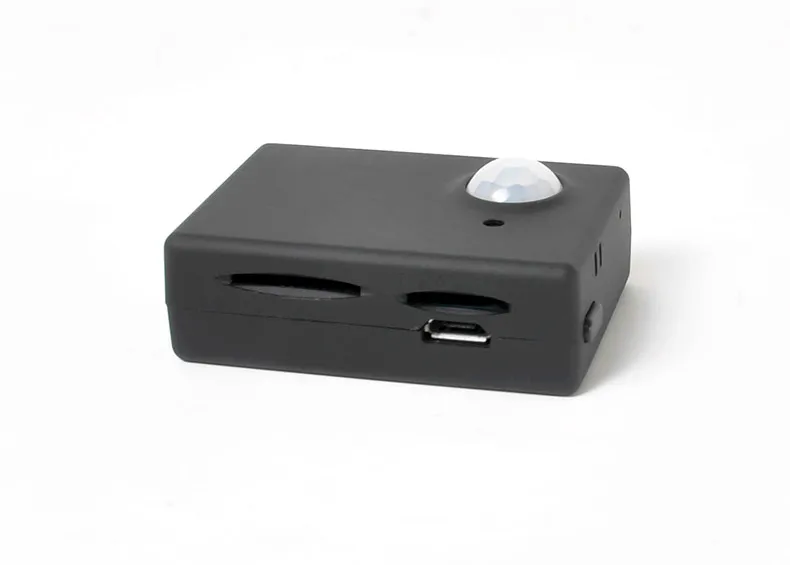

Classic x9009 fk-007x

Features:

Support global frequency ranges:GSM850, GSM900, DCS1800, PCS1900.

Infrared sensor alarm. When people get close to the alarm, it will send SMS for taking phone (need phone GPRS function), and record in the micro SD card ( not included).

Insert SIM card into the device for controlling.

Enhanced home PIR sensor alarm & high quality

Paste the alarm in a certain height, away from the body max ten meters, the angular range 120 degree.

As long as people or animal, swaying back and forth in a very short time, it will automatically start the alarm.

You can turn on or turn off its sensing function by sending message to its SIM card number:

Send a SMS of content "W" to the SIM numbers, then you will receive a http link and open it can show a GPS map.

Support video recording and sound recording.

Simple operation, stable performance and easy installation.

Low power consumption, long standby time and accurate alarming.

Suitable for use in home, children's bedroom, office, hospital, car, storage, etc.

Specifications:

Network: GSM850/900/1800/1900 network and GPRS

Camera Sensor Type: CMOS

Camera Pixel: 1.3 million

Video Format: AVI

Video Definition: 320 * 240

Video Frame Rate: 27FPS

Expansion Card: Micro T-Flash card, Support 64M~32GB (Not included)

Battery: Polymer(600mAh)

Charge Voltage: DC-5V

Working Voltage: 3.7V

Human Body Induction Scope: 0~8m

Monitoring Scope: 100 Square meters

Interface: Power Charge Interface (Mirco USB)

Stand-by Time: 3~5 days (Using)

Product Size: 48 * 35 * 15mm / 1.9 * 1.4 * 0.59in

Product Weight: 28g / 0.98oz

Package Size: 12 * 9 * 2.5cm / 4.7 * 3.54 * 0.98in

Package Weight: 74g / 2.6in

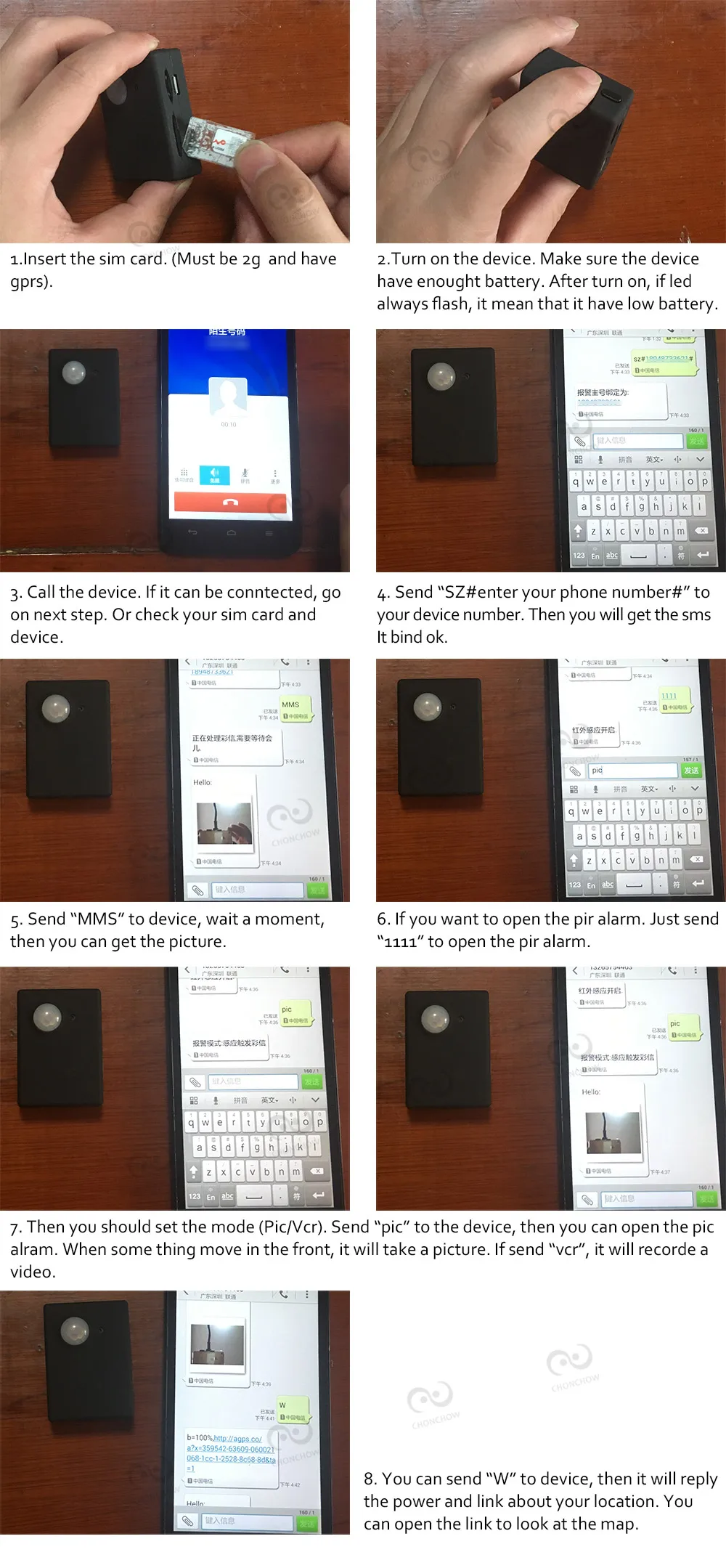

How to test?
