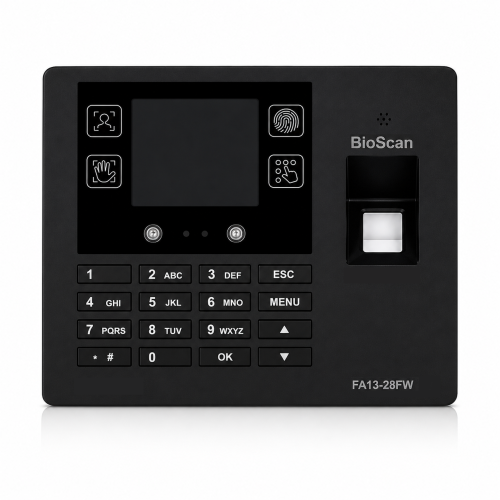

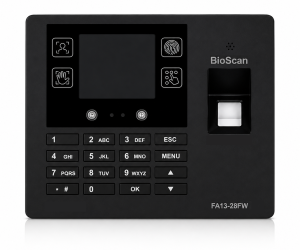

BioScan FA13-28FW Fingerprint Time Attendance System

The BioScan FA13-28FW Fingerprint Time Attendance System is a powerful biometric attendance terminal designed to simplify employee attendance management for businesses of all sizes. Equipped with built-in Wi-Fi, TCP/IP networking, USB data transfer, and a responsive 2.8-inch color display, this attendance machine provides flexible installation and seamless communication without requiring complicated network infrastructure.

Designed for offices, factories, schools, hospitals, banks, retail stores, and government organizations, the FA13-28FW combines high-speed fingerprint recognition with reliable data storage to improve workforce management and eliminate manual attendance errors. Modern biometric attendance systems with network connectivity help organizations streamline attendance tracking and payroll processing while reducing buddy punching and inaccurate records.

Advanced Wireless Connectivity

Unlike conventional attendance machines, the BioScan FA13-28FW features built-in Wi-Fi, allowing organizations to connect the device wirelessly to their network. In addition to Wi-Fi, it also supports TCP/IP Ethernet and USB Flash Drive, providing multiple options for attendance data synchronization and report management.

Whether installed in a single office or across multiple departments, administrators can conveniently manage attendance records and export reports whenever needed.

Fast & Accurate Fingerprint Recognition

Powered by an advanced biometric recognition algorithm, the FA13-28FW authenticates fingerprints in less than 0.5 seconds. Its highly accurate fingerprint engine minimizes false acceptance and rejection, ensuring dependable employee verification every time.

Fingerprint Performance

• Recognition Speed: ≤0.5 Second
• Recognition Mode: 1:N
• FAR: 0.00001%
• FRR: 0.1%

This level of accuracy makes the system ideal for organizations that require secure and reliable attendance management.

Large Storage Capacity

The BioScan FA13-28FW is designed to support growing businesses with generous storage capabilities.

Capacity

• Up to 1,000 Users
• Stores 3,000 Fingerprint Templates
• Supports 1,000 Password Users
• Saves 160,000 Attendance Records

The large memory capacity allows businesses to maintain extensive attendance history without frequent data clearing.

Multiple Verification Methods

To accommodate different workplace requirements, the FA13-28FW supports several authentication options.

• Fingerprint Verification
• Password Verification
• Optional RFID Card Authentication
• Fingerprint + Password Combination

This flexibility enables organizations to implement attendance policies that best fit their operational needs.

Easy-to-Use Interface

The terminal features a bright 2.8-inch color TFT display with intuitive menu navigation and voice guidance for smooth daily operation.

Additional usability features include:

• Voice Prompts
• Real-Time Clock (RTC)
• Manual Self-Test Function
• Screen Saver Power Management
• User-Friendly Keypad

Built for Reliable Daily Operation

The BioScan FA13-28FW is engineered for continuous operation in demanding environments.

Operating Specifications

• Operating Voltage: DC 5V ±5%
• Rated Input: DC 5V / 2A
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 0%–80% (Non-Condensing)
• Ambient Light: 0–8000 Lux

Its compact dimensions of 180.5 × 132 × 36.5 mm allow easy wall installation while maintaining a professional appearance.

Comprehensive Attendance Management

The FA13-28FW includes powerful attendance management functions suitable for organizations with multiple work schedules.

Management Features

• 16 Departments
• 24 Shift Schedules
• 24 Bell Schedules
• Attendance Report Export
• Manual System Self-Test
• Automatic Power Saving

These features help HR departments automate attendance tracking and simplify payroll preparation.
