X-Ray Baggage Scanner Supply and Installation

X-Ray Baggage Scanner Supply and Installation
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

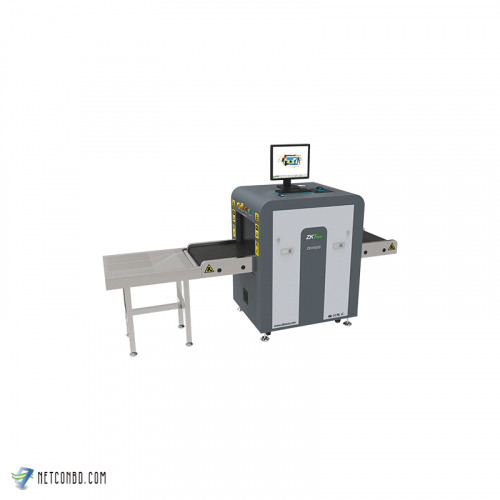

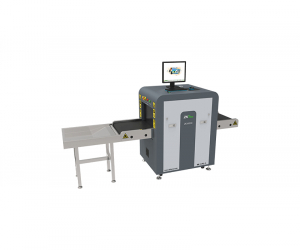

Bannage Scanner System 507 x 305 MM
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Model: ZKX5030A
Brand: ZKTeko
Origin: China
Warranty : 01 Year
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Features:

Tunnel Size W507mm*H305mm
Speed 0.20m/s
Hight of Transmission Belt 730 mm
Maximum Load ≤120Kg(Adequate distribution)
Wire Resolution 34 AWG(0.16mm metal wire)
Space Defintion HorizontalΦ1.0mm/VerticalΦ2.0mm
Penetrate Definition 32 AWG
Penetration 8mm Steel board
Monitor 17 inch LED
System Function High density alarm, TIP, Luggage counter, System running timer, X- ray emitting timer, System maintainance, Training, 64 times continuous zoom in
Film Safety ASA/ISO1600 standard of film safety
Tube Voltage 80kV
Cooling Seal oil cooling/100%
Single Inspection Dosage Rate ≤1.0μGy
Radiation Leak Dosage 0.1μGy/h(5cm from the shell)
Size L1701mm x W796mm x H1150mm
Package Size L1900mm × W990mm × H1485mm
Package Weight 410KG
Power Consumption 1kVA
Noise 53.8dB(A)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Free Service: 1 Year
