VS890 Auto Diagnostic Scanner Vgate VS890 Diagnostic tool OBD2 CAN-BUS Fault Car Code Reader VS 890 Multi-Languages Better ELM327 AD310
Location: Elephant-Road-Dhaka
Rate this product!
Vgate VS890 Description:----
The multi-language user interface, supports up to 13 languages
The application layer fully complies with ISO 15031 and is compliant with SAE J1979.
Fully functional Mode$01~Mode$09 operation.
Supports a large number of vehicles made by 70 manufacturers.
DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.
Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs,which shows the probable cause of the code.

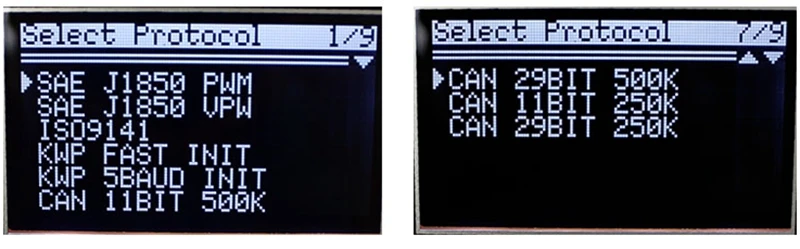

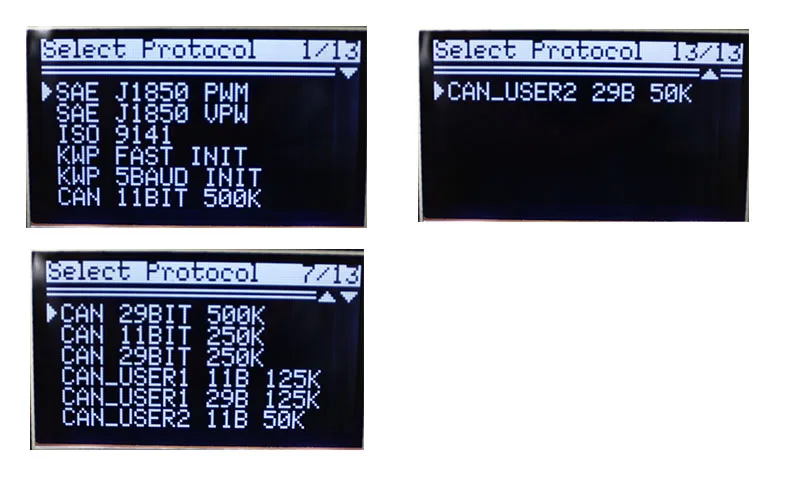

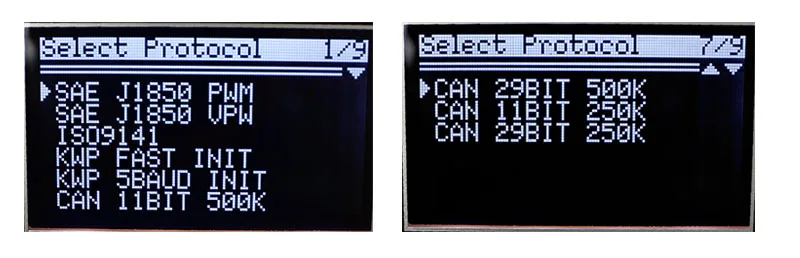

Vgate VS890 Supported Protocol:
SAE J1850 PWM
SAE J1850 VPW
ISO9141
KWP FAST INIT
KWP 5BAUD INIT
CAN 11BIT 500K
CAN 29BIT 500K
CAN 11BIT 250K
CAN 29BIT 250K
CAN_USER1 11B 125K
CAN_USER1 29B 125K
CAN_USER2 11B 50K
CAN_USER2 29B 50K
Full CAN BUS support for new cars
11 Bit and 29Bit CAN
Capable of communicating with multi-ECU System
Languages
Vgate VS890 Feature:
1. Color: Scarlet ,dark blue, Pearl Blue,Green Blue,Metal Black,Orange
2. LCD:3 inch black mask LCD, wide visible area, high contrast.The contents are readable even in the strong sunshine.
3. ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.
4. Harmless fade-resistant paint.
5. Rubber oil sprayed housing; slide, dirty, and vibration proof.
6. Passed EMI/EMC test.
7. High-quality PET 6-key film keypad. (3M harmless glue)
8. CE,FCC,RoHS Certified
9. Support manually input DTC Look-up
10. Read DTCs
11. Clear DTCs
12. Datastream
13. Freeze Frame
14. I/M Readiness
15. O2 Monitor Test
16. On-Board Mon Test
17. Component Test
18. Vehicle Info.
19. Modules Present
20. Unit of Measure
21. State Emission
22. Read All DTCs
23. Read Stored DTCs
24. Read Pending DTCs
25. Detailed help information
26. Capable of showing probable cause of DTCs.
27. Up to 161 data items, each of them is with online help information.
28. Reset engine MIL
29. This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL.
Vgate VS890S Features & Functions:
Works with all 1996 and later OBDII compliant US, European and Asian vehicles.
Support manually input DTC Lookup. This operation will erase all DTCs, Freeze Frame Data, Oxygen sensor data, and reset IM Monitors and MIL.
Read Diagnostic Trouble Codes(DTCs)
Clear trouble codes
View real-time vehicle operation data (Datastream)
View Freeze Frame data
View I/M readiness
Read O2 Monitor Test data
Read On-Board Mon. Test
Component Test
View the vehicle’s information
Modules Present
Unit of Measure
State Emission
Read All DTCs
Read Stored DTCs
Detailed help information
Capable of showing probable causes of a DTC code
Up to 161 data items, each of them is with online help information.
Reset engine MIL.
This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL.
Vgate VS-890S:
1.Support Multi-brands cars, works with all 1996 and later OBDII compliant US, European and Asian vehicles.

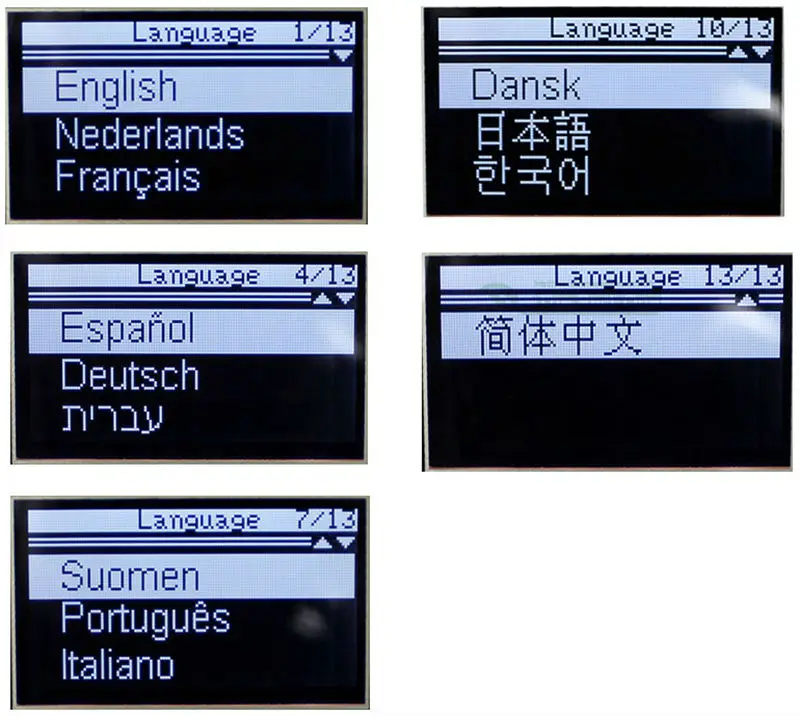

2.Multi-language supported:English, Spanish, Portuguese, Korean, Japanese, Italian, Hebrew, German, French, Finnish, Dutch, Danish, Chinese.
The Vgates can OBD II Diagnostic Scanner VS890s allows you to access your OBD II vehicle’s data which was only available to dealership technicians using expensive proprietary scan tools.
Now it's available to every people who has a Vgatescan!
Vgatescan is the prime choice for users who keen on DIY.
Vgate VS890S Specifications:
LCD:2.4 inch VA STN 128*64, wide visible area and high contrast
The contents are readable even in strong sunshine.
Harmless fade-resistant paint
Rubber oil sprayed outer cover, slide,dirty and vibration proof.
High-quality PET film 6-key keypad.(3M harmless glue)
CE,FCC, RoHs certified
