|Base Frequency||2.90 GHz|
|Maximum Turbo Frequency||4.30 GHz|
|Cache||12 MB SmartCache|
|Default TDP||65 W|
|Maximum Size||128 GB|
|Max Number of Channels||2|
|Processor Graphics||Intel UHD Graphics 630|
|Base Frequency||350 MHz|
|Max Dynamic Frequency||1.10 GHz|
|Max Video Memory||64 GB|
|Max Resolution||Max Resolution (HDMI 1.4): [email protected]
Max Resolution (DP)‡: [email protected]
Max Resolution (eDP - Integrated Flat Panel): [email protected]
|Manufacturing Warranty||03 Years Warranty|

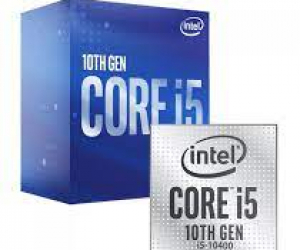

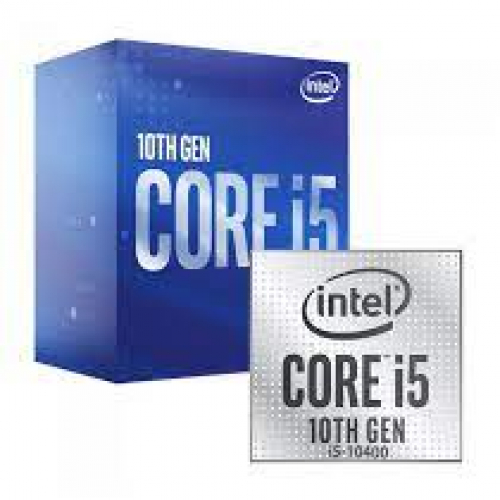

This i5-10400 Processor comes with an Intel UHD Graphics 630 graphics. This new 10th gen Comet Lake microarchitecture is manufactured with the 14nm process that comes with six cores but lacks in HyperThreading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 400-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 400-series lineup. These Processors also support 64-bit computing on Intel architecture require an Intel 64 architecture-enabled BIOS.
Intel 10th Generation Core i5-10400 Processor having the base frequency of 2.90 GHz that can be reached as max turbo frequency at 4.30 GHz. It has the SmartCache of 12 MB containing 6 cores and 12 threads. With the bus speed of 8 GT/s DMI3, it has thermal design power (TDP) rating of 65W. This latest microchip has few expansion options such 3.0 PCI express revision having configured up to 1x16, 2x8, 1x8+2x4, and maximum 16 lanes. Considering the memory this processor has dual-channel of max 128GB of the size that supports up to DDR4-2666 bus speed.
