7 inch Car Monitor + Waterproof 18 IR Vehicle Rear View Camera Kit Reversing Parking Backup Camera for Bus Truck Motorhome 12V-24V

Product Description:

Features:

18 IR reverse camera, high-resolution picture
7" TFT LCD monitor
Available for VCD/DVD/Camera
2 channels video input, full-color display. auto white balance
Automatic back sight function for car backing
100% waterproof IR camera with 120° wide view angle
18 infrared lamps, night vision up to 10-15 meters
Can easily adjust the camera installation angle in multi-level
Headrest style installation, support screen rotation, easy to mount  & easy to use

18 IR Car Reverse CMOS COLOR CAMERA
Image sensor CMOS
TV system: PAL
Scanning system PAL: 625Lines 50Field / NTSC: 525Lines 60Field
Lens: 2.8mm(120°)
Number of pixels: 500(H)*582(V) 510(H)*492(V)
Horizontal Resolution: 420 TV Lines
Scan frequency: 50Hz ~60Hz
S/N Ratio: ≥48dB(AGC OFF)
Minimum illumination: 0 LUX
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision: Yes
Video Output: 1.0Vp-p.1.5ω. RCA Connector
Synchronous System: International Synchronization
work Temperature: - 20°C ~ +60°C
Power Requirement: DC 12 V~24V
Focal distances: 30mm to infinite
Weight: Approx. 310g
　

　7" CAR TFT LCD MONITOR

Display Size 7.0 Inch
Resolution 480(W) x RGB x 234(H)
System PAL&NTSC Auto
Power requirement DC 12V~24V
Consumption 6W
Video 2-channel video input; V1/V2 switch
Net Weight Approx. 743g

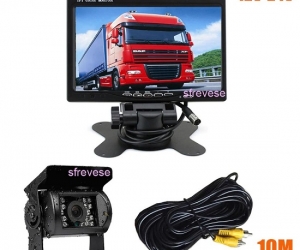

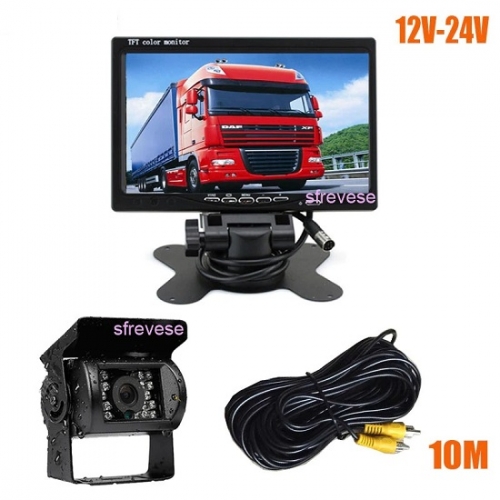

package includes:-

1 x 7" LCD Rearview Monitor (DC 12V~24V)
1 x 18 LED CMOS car rearview camera (DC 12V~24V)
1 x 10M video cable for connecting the camera with the monitor
1 x Mounting Plate
1 x Remote Controller (Cell Battery maybe remove for mail)
1 x Manual
