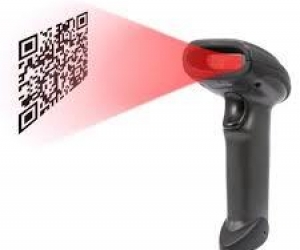

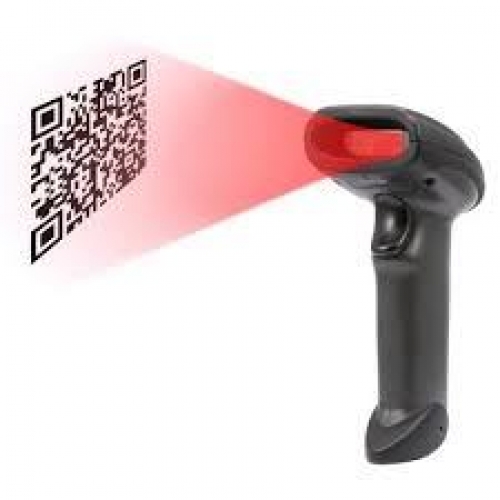

Laser Barcode Scanner
Condition : Brand New
*Last Updated On :
3 years ago
*Status :
In Stock
Seller:
Location: Elephant-Road-Dhaka
Rate this product!
Description
Physical Parameters
| Light source | Visible laser 650nm |
| Error rate | 1/5,000,000 |
| Safety | According to national laser safety standard Class2 |
| Barcode type | 1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc. |
| Supported interface | Built-in PS/2 keyboard, RS-232 serial, standard 2.0USB interface |
| Trigger mode | Manual; automatic successive scanning; automatic scanning with bracket (option) |
| Detection distance | 25cm (250cm2) 20cm (100cm2) 5cm (small area) |
| Baud rate | RS232 baudrate: 2400-38400 |
| Bar width | Minimum 0.1mm（3mils） |
| Scanning width | 60mm at 30mm (from objects); 98mm at 100mm (from objects) |
| Depth of scanning field | 2~9cm (0.1mm bar width); 3~40cm (0.3mm bar width) |
| Scanning speed | 150 times/sec |
| Scanning distance | 10-600mm Elevation angle 60°, Inclination angle 45° |
| Operating temperature | -20ºC~50ºC |
| Storage temperature | -20ºC~60ºC |
| Operating humidity | 0~95% |
| Storage humidity | 5%~95% |
| Input voltage | DC 5V±5% |
| Operating current | 50ma (operating mode); 30ma (standby mode); 100ma (maximum peak) |
| Quiescent current | 20mA |
| Shock resistance | Pass 1.5 free fall test |
| Electromagnetic interference | According to en8001, par1 standard |
| Dustproof waterproof | According to iec529, ip42 standard |
| Scanner size | H*W*L: 162mm*76mm*96mm |
| Shell material | ABS+PVC+PC |
| Language | Support multi-languages |
