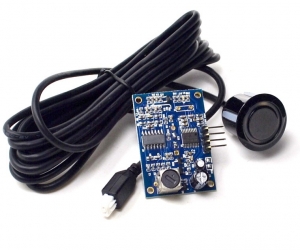

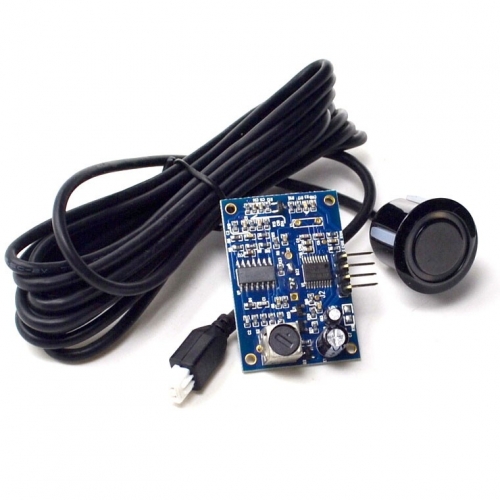

K62 Integrated Ranging Module Waterproof Ultrasonic Sensor Module for Arduino

Tk. 900 fixed*
Condition : Brand New
*Last Updated On : 2 weeks ago
*Status : In Stock

01772332000 , 01818269935
Seller:
ISSBD

ISSBD

Location: Elephant-Road-Dhaka

Rate this product!

Description

Note:

  • Electric parameters : JSN-SR04T
  • Working voltage  DC 3 ~ 5.5 V
  • Quiescent current  <8mA
  • Acoustic emission frequency  40 khz
  • The farthest range: 600 cm
  • Last range: 20 cm
  • Distance measurement accuracy: ± 1 cm
  • Resolution: 1mm
  • Measuring angle: 75 degrees
  • Input trigger signal: TTL pulse above10uS
  • Serial sending command: 0X55
  • Output echo signal: output pulse width level signal or TTL
  • 3-5.5 V (power positive)
  • Trig (RX) RX
  • Echo (output) TX
  • GND (power supply negative
  • Product size: L42 * W29 * H12 mm
  • Working temperature: -20 ℃ - + 70 ℃
  • Product color: PCB board blue
  • This module connection should not be charged for live connection, then let the module first gnd connect, otherwise it will affect the normal operation of the module.
  • The varying, measured object area is at least 0.5 square meters and the plane should be smooth, otherwise it will affect the measurement results.





Package Included:

1 * K62 integrated ultrasonic ranging module

one
