Thermal Imaging Camera

Color: Orange

Product size: 212 x 95 x 62mm

Display: 2.4 inches full angle high resolution color screen

Infrared image resolution: 32 x 32(1024 pixels)

Visible image resolution: 0.3 mega pixels

Field angle/minimum focal length: 33 x 33 / 0.5m

Thermal sensitivity: 0.15°C

Temperature test Range: -20°C ~ +300°C

Test measurement accuracy: +/-2% or +/-2°C(+/-2% or -4°F)

Emissivity: adjustable 0.1-1.0

Image capture frequency: 6Hz

Wavelength Range: 8-11.5um

Focal length: fixed focal length


Palette: iron red, rainbow, rainbow high contrast, gray(white glow), gray(black glow)

View options: 5 kinds of full infrared to the full visual, mixing visible and infrared

Memory card: small SD card

File format: bmp

Automatic shutdown time: 12 minutes

Operating temperature: -5°C to +40°C

Storage temperature: -20°C to +50°C

Relative temperature: 10%RH to 80%RH

Battery: 4 x AA battery(not included)

Battery Life: 6 Hours


Note:


Please take out the battery if the instrument is not used for a long time.

Do not use the instrument in explosive, flammable, damp or corrosive environment.

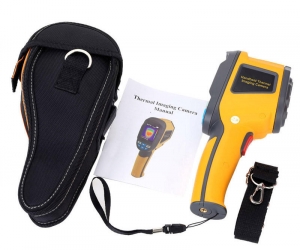

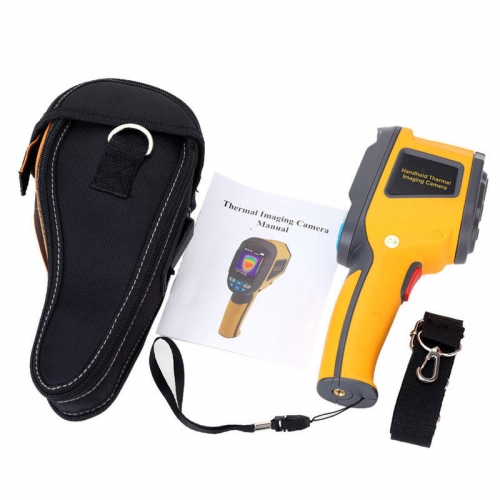

Package Included:


1 x HT-02D Handheld Thermal Imaging Camera

1 x Hanging Rope

1 x Packing Bag

1 x User Manual

Detail Pictures:

,,,,,,,,,
