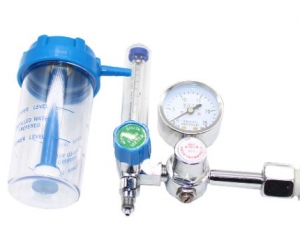

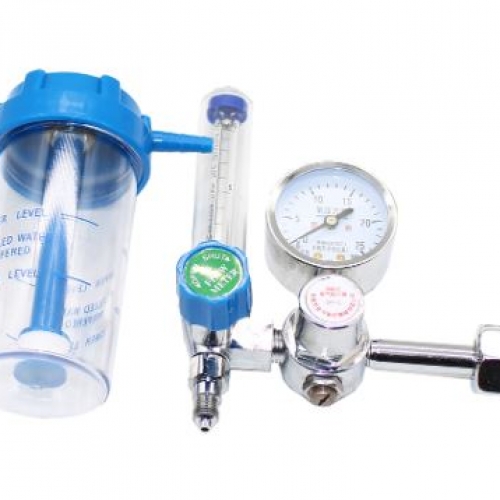

Oxygen regulator pressure flow meters 1-10L / min

1. Oxygen flow Setting range 1-10L / min

2. 0.2 ~ 0.3MPa For Constant pressure Regulator

3. Working pressure: High pressure Oxygen Inhaler Part Inlet 12MPa-15MPa Pressure , Blood pressure Should Be Lowered Then 0.2MPa-0.3MPa Pressure range

4. Then, the high pressure part   Inhaler Gear to hold on constantly for 3 minutes 22.5mp to hydraulic testing , high-pressure part no should be permanent deformation
5. Drain valve Discharge pressure 0.35mp to within ± 0.05 MPa, inhalation Output Pressure rises own pressure, Exhaust Valve It is possible Automatic
6 . tighten the nut yarn size inhaler and oxygen cylinder connected for G5 / 8 "
7 oxygen out most External Conical Joint Pipeline , Joint Conical Horse Maximum Outer diameter Φ9mm ± 0.5mm
8. Most Inhaler Tide Bottle Good Colorless and transparent, And Maximum and minimum Liquid Marked With
