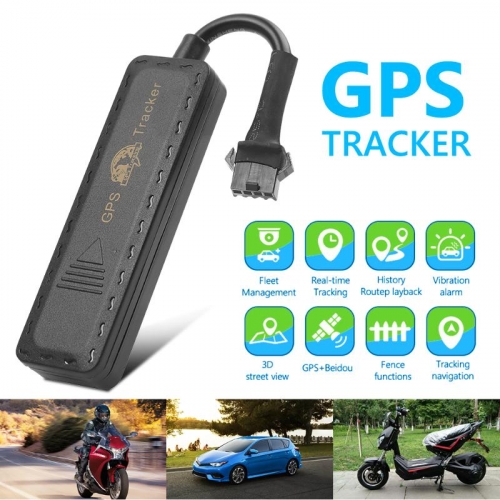

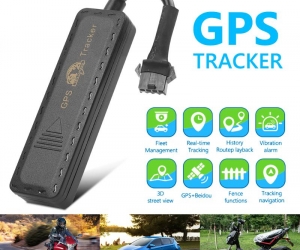

G900M GPS Tracker 2G GSM Car Motorcycle Vehicle Tracking Device GPS BDS Locator Shock Alarm Cut Off Oil 9-36V
1. The IMEI and ID NO. are the only NO. of the world, can not change, only support 2G SIM cards, not available for 3G or 4G SIM cards.
2. If you have any questions or problems, please contact us and we will try our best to solve your problem.
1. Cut off oil and power, displacement alarm, vibration alarm, multi-vehicle monitoring, street map, electronic fence, no charging, overspeed alarm, real-time positioning, GPS + BDS (BeiDou Navigation Satellite System)
2. Vibration alarm, built-in high-sensitivity vibration sensor, when the device feels the vehicle vibration, it will immediately send an alarm to the mobile phone.
3. View historical trajectory, the route your car has passed. The parking time, location, mileage, direction, and history are automatically saved. You can check the trajectory at any time on the platform
4. Multi-platform monitoring: support for Android/iOS mobile app and computer client viewing.
Working voltage: 9-36 V
Body color: Black
Body size: 83 * 24 * 10 mm/3.27*0.94*0.39"
Waterproof rating: IP65
Communication system: GSM
GSM band: 850/900/1800/1900 MHz
GPRS: Class12, TCP / IP
Maximum output power: 32 ± 2 dBm (GSM850 / 900MHz)
30 ± 2 dB (GSM1800 / 1900MHz)
Receiving sensitivity: -105 dBm (GSM850/900MHz)
-107 dBm (GSM1800/1900MHz)
Frequency error: ± 90 Hz (GSM850/900MHz)
± 180 Hz (GSM1800/1900MHz)
Satellite mode: GPS / BDS
Frequency: GPS L1 1575.42 MHz, BDS 1561.098MHz
Positioning accuracy: <5 meters
Speed measurement accuracy: <0.1m/s
Timing accuracy: <30ns
Tracking sensitivity: -162 dBm
capture sensitivity: -148 dBm
Positioning time: cold start ≤32s; hot start ≤3s
GPS positioning: support
BDS positioning: support
GPRS positioning: support
Operating temperature: 0 ~ +65 °C
Storage temperature:-25 ~ +80 °C
Red wire connects to positive;
Black wire connects to negative.
Green wire connects to ignition wire;
Yellow wire is optional function.
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
1 X GPS Tracker
1 X Power Cord
1 X Instruction Card
