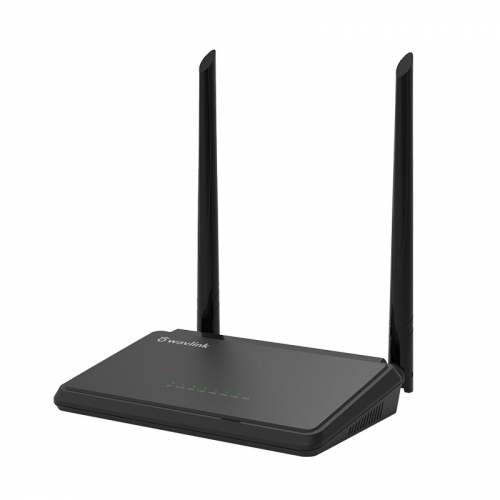

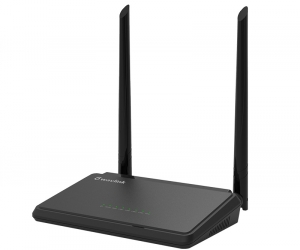

WL-WN529K2
- TECHNICAL SPECIFICATIONS
- Model
- Ports
1 x 10/100Mbps WAN PORT
4 x 10/100Mbps LAN PORTS
- Buttons
1 x WPS & Reset
- LED
1 x WPS
4 x LAN
1 x WAN
1 x Wi-Fi
1 x Power
- Flash
16Mb
- SDRAM
64Mb
- Power Supply
DC5V / 1A
- Power Consumption
3.5W MAX
- Rated Voltage/ Frequency
Input:100-240 Va.c. 50/60Hz
- DIMENSIONS
- Unit Dimensions
175mm x 120mm x 25mm (L x W x H)
- WIRELESS
- Working Standards
IEEE 802.11b/g/n
- Speed
11n: Up to 300Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
- Frequency band
2.4GHz
- Transmit Power
19DBm MAX
- Wireless Security
WPA-PSK/ WPA2-PSK encryption
- Antennas
2 x 5dBi Omni Directional Antennas
- PACKAGE
- In The Box
1 x WL-WN529K2
1 x RJ-45 Networking Cable
1 x Power Adapter
1 x Quick Installation
- 5dbi omni directional antennas
- External antennas provide omnidirectional stable signal and superior wireless coverage
- Complies with IEEE 802.11b/g/n standards
- Provides up to 300Mbps transmission rates
- Provides 1 x 10/100Mbps Auto-Negotiation Ethernet WAN port
- Provides 4 x 10/100Mbps Auto-Negotiation Ethernet LAN ports
- Built-in DHCP server with automatic dynamic IP address distribution
- Easy one-touch wireless security encryption with the WPS button
