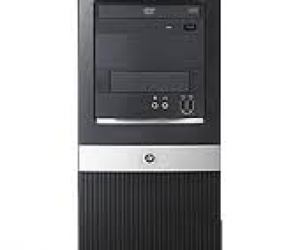

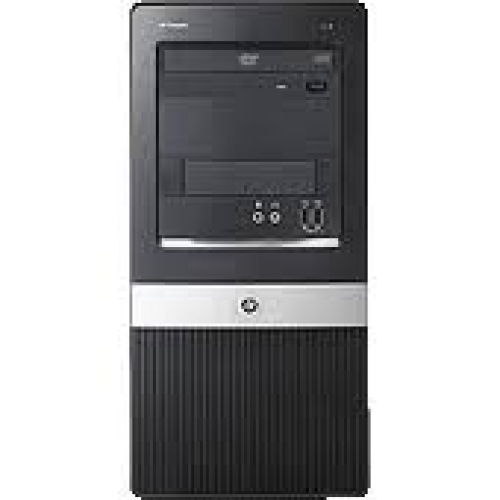

Refublised HP Compaq dx2310 Microtower PC

Chipset

• Intel G31 Express

• Intel I/O Controller Hub 7 (ICH7)

Processors

• Intel Core 2 Quad E9550 Processor (2.83 GHz, 12 MB L2 cache, 1333 MHz FSB)

Memory

1 GB DDR2 Synch DRAM PC2-6400 (800 MHz) Non-ECC (2 x 512 MB)

1 GB DDR2 Synch DRAM PC2-6400 (800 MHz) Non-ECC (1 x 1 GB)

Diskette Drive

1.44 MB Diskette Drive

Media Reader

HP 16-in-1 Media Reader and additional USB 2.0 port

Graphics

• Intel Graphics Media Accelerator 3100 – integrated

• NVIDIA GeForce 8400 GS (256 MB) Single Head PCIe x16 *

• ATI Radeon HD 2400XT (256 MB DH) PCIe x16

note:

* 1GB of system memory required. Graphics cards use part of the total system memory to enhance graphics performance.

Keyboard

Keys : 104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H): 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight: 2 lb (0.9 kg) minimum

Pointing device

Touchpad with scroll zone, two pick buttons.

Expansion card slots

ExpressCard/54: Supports ExpressCard/54 and ExpressCard/34.

Optional Integrated Smart Card Reader (replaces ExpressCard/54 slot): Compatible with ISO 7816 compliant Smart Cards PC/SC interface support

Power Supply

250 W/300 W ATX Power Supply – PFC with a 115 v/230 v line switch (varies by country/region), with HV immunity up to 410 V/s

Integrated Realtek 8111C-VB-GR GbE Ethernet Controller

Connector: RJ45

Data rates supported : 2.5 GHz data rate with X1 link width.

Dimensions : 9 mm x 9 mm

Intel PRO/1000 PT Gigabit PCIe Controller

Connector: RJ45

Controller: Intel 82572EI Gigabit Ethernet Controller

Dimensions: 6.4 x 2.6 x 0.8 inches (16.3 x 6.6 x 1.9 cm)

Broadcom NetXtreme 5751 Gigabit Ethernet PCIe x1 Controller

Connector: RJ45

Controller: Broadcom 5751 PCI-Express LAN Controller

Power requirement: 3.1 W @ +3.3 V AUX supply with 5 V tolerance

Agere 56 K PCI Modem

Data Transmission 56,000 Kbps maximum downstream data

note:

56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during download transmissions.

Operating Temperature 32° degree to 158° degree F (0° degree to 70° degree C)

Operating Humidity: 20% to 90%, non-condensing

Chipset : Agere Systems SV92PL – Integrated PCI interface with 5 V tolerant buffers and CardBus support

Audio

• Realtek ALC662 High Definition audio codec

• 3D audio compliant and HD Audio compatible

• Internal PC speaker (optional)

Power Conservation

• APM 1.2 support

• Screen blanking

• Hard drive 'Idle' mode

• System Idle mode

• -3 Wpower consumption in ES mode – suspend to RAM (S3) (instantly available PC)

Dimensions (H x W x D)

• 15.16 x 7.28 x 16.38 inches with bezel, 385 x 185 x 416 mm

• 14.88 x 6.50 x 16.10 inches without bezel, 378 x 165 x 409 mm

Packaged Dimensions (L x W x H): 19.63 x 24.13 x 10.56 inches 498.6 x 613 x 268.2 mm

Weight

18.3 lb (8.3 kg)

Temperature

Operating: 5° degree to 35° degree C

Non-operating: –30° degree to 65° degree C

Relative Humidity

Operating: 10% to 90%, (non-condensing at ambient)

Non-operating: 90% (non-condensing at ambient)

Maximum Altitude (unpressurized)

Operating: 7500 ft (2286 m)

Non-operating: 15,000 ft (4572 m)

Operating System

• Microsoft Windows XP

• Microsoft Windows Vista

• Microsoft Windows 7
