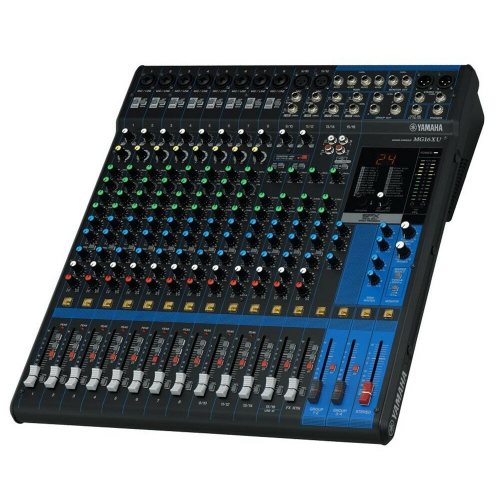

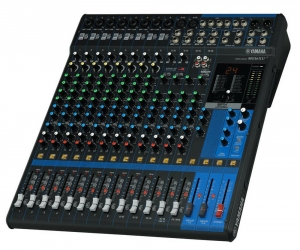

YAMAHA MG166CX MIxer

• Built-in SPX Digital Effects
• Easy operation
• Lightweight, portable design
• Versatile connectivity and pro-class connectors
• Built-in channel compressors
• High-performance microphone preamplifiers with switchable phantom power
• 3-band Channel EQ and high-pass filters
• Aux/Effects Sends
• Smooth 60mm faders and illuminated channel ON switch
• Bright meters for visual level monitoring
Specifications
• Mic/Line inputs: 10
• Line inputs: 8 mono + 4 stereo
• Mixer input channels: 16
• Group busses: 4
• AUX busses: 3, including 1x Effect send
• Main busses: Stereo
• Total harmonic distortion (THD+N): Less than 0.1%, 20Hz-20kHz
• Frequency response: 0, +1, -3dB, 20kHz
• Equivalent input noise (EIN): -128dBu
• Residual output noise: -98dBu
• Crosstalk (1kHz): -70dB
• Power supply adaptor: PA-30 AC adaptor (AC35VCT, 1.4A); 100V, 120V, 220V, 230V or 240V, 50/60Hz
• Power consumption: 35W
• Dimensions: 478x105x496 mm
• Net weight: 5.5 kg
• Accessories: Owners manual, AC adaptor
