Mega328 transistor tester diode triode capacitance resistance ESR meter mos / Pnp / NPN L / C / R-yellow

 Mega328 transistor tester diode triode capacitance resistance ESR meter mos / Pnp / NPN L / C / R-yellow

• Resistance: 0.1 Ω-50mΩ
• Capacitor: 25pF-100000uF
• Inductance;0.01 MH-20 h
• Working power: DV-9V
• Standby
• current: 0.02uA
• Operating
• current: 25mA

Operation mode: transistor tester

Display type: Digital display

Brand Name: Transistor Tester

Inductance measurement range: transistor tester

Capacity measurement range: transistor tester

Voltage measurement range: transistor tester

DIY Equipment: Electric

Current measurement range: transistor tester

Measuring Resistance Range: Transistor Tester

Size: transistor tester

Model Number: Transistor Tester

Working temperature: Other

property:

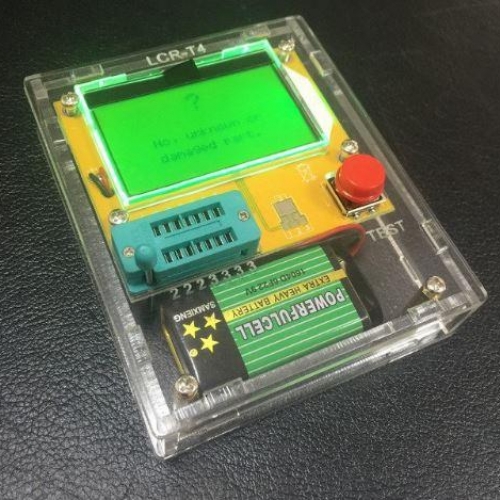

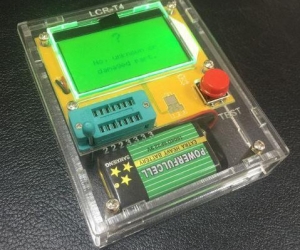

128 * 64 LCD display with yellow-green background light,
powered by 9-volt battery Total 2 lithium-ion batteries can generate 8.4 volt batteries for a long time.
New boot voltage detection function
Detects NPN and PNP transistors automatically, N-channel and P-channel MOSFET diodes, diodes, resistors, capacitors or other devices.
Test pins of components automatically and display on the LCD screen.
Measure the voltage and gate capacitance of the MOSFET,
measure bipolar transistors, current, expansion and voltage-base factors.
One button operation, automatic shutdown to avoid unnecessary waste.
Short detection time: only 2 seconds is normal. 1 minute charge for large capacitor detection.

Note:
Please make sure that the capacitor is discarded before testing.
Of removable transistor test machine, the picture is only for reference, please do not disassemble
The image of the test process, reference parts, please in kind prevail!

Specifications:
Material: PCB
Display: 128 * 64
Normal speed test: 2 seconds
Current Shutdown: 20nA
Item size: 6.5 * 6.5 * 1.3cm / 2.6 * 2.6 * 0.5in
Item weight: 44g / 1.6 oz
Packing size : 10 * 8 * 2cm / 3.9 * 3.2 * 0.8in
Package weight: 47g / 1.7oz

Package list:
1 * Test transistor + transistor tester box ( without battery)
