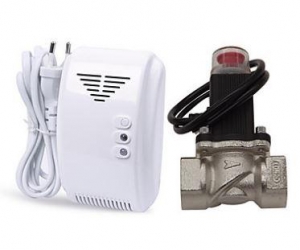

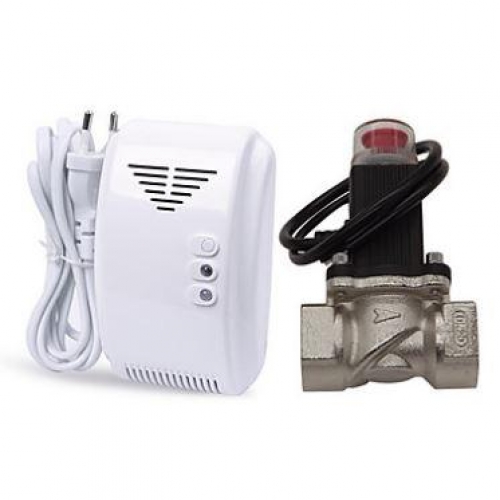

LPG Natural Gas Leak Detector Alarm With DN20 Electromagnetic Solenoid Valve for gas leakage auto shut off-White

 LPG Natural Gas Leak Detector Alarm With DN20 Electromagnetic Solenoid Valve for gas leakage auto shut off-White

• HIGH RELIABILITY SENSOR
• AUTO RESET AFTER ALARM
• MCU PROCESSING ADOPTED
• AUTO DETECT SENSOR FAILURE
• INDUCED GAS- NATURAL GAS / LPG
• SMT DESIGN, HIGH STABILITY

LPG Natural Gas Leak Detector Alarm With DN20 Electromagnetic Solenoid Valve for gas leakage auto shut off

 Introduction:
     The electrovalve will shut off the gas valve automatically for safety when the gas detector detect the LPG, natural gas or marsh gas etc. .The product is suitable for the safety of residential house, villas, hotels, markets, boarding house etc.

Packing List for each set: One gas detector + one DN20 elecmagnetic shut off valve.

TECHNICAL SPECIFICATION
Operating Voltage AC100V to 240v
Static Current: less than 90mA
Alarm Current: less100mA
Rating Power: less than 3W
Warm-up Time: about 180S
Alarm Level: 10%LEL
Alarm indicator: red LED flash
Failure Indicator: yellow LED on & beeper long-buzz
Sound Level: more than 85dB/m
Operating Temperature: -10 +50 centi degree
Environment Humidity: less than95% RH (no congelation)
Installation Mode: wall mounted
Outline Size 115*72*41mm

Installation of gas detector
Installation should be according to gas weight.
 For natural gas and mash gas etc, which are a bit lighter than air, gas detector should be installed under ceiling 0.3m to 1.2meters and within the rang of 1.5m semidiameter from gas sources.

 For liquefied petroleum gas (LPG), which is a bit heavier than air and sink down to a lower level, the gas detector should be installed above 0.3—1.2meters from floor and within the range of 1.5m semidiameter from gas sources.
