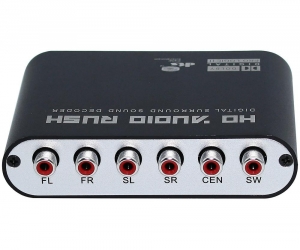

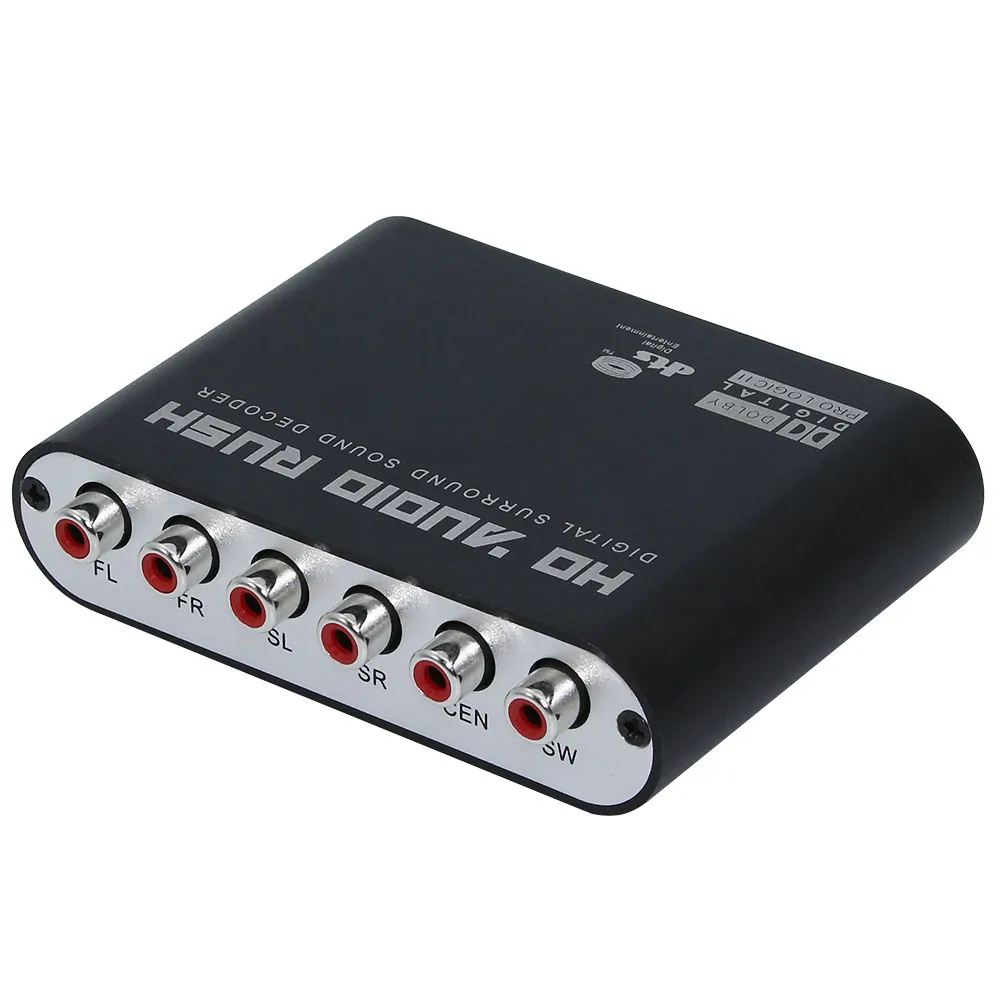

Digital to Analog 5.1/ 2.1 CH Analog AC3 DTS Audio Converter-Black

 Digital to Analog 5.1/ 2.1 CH Analog AC3 DTS Audio Converter-Black

• Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output
• The analog stereo (L/R) signals after digital processing chip handle convert it to analog 5.1 channel output
• Multi-channel audio input (SPDIF, Coaxial, Stereo), 2 x SPDIF input, 1 x Coaxial Input, 1 x Stereo
• Analog 5.1-channel or Stereo output
• USB 5V Output
• Dimension: 105*75*25 mm

5.1 Audio Decoder 5.1/ 2.1 CH Analog AC3 DTS Audio Gear Digital Sound Decoder SPDIF DTS/AC-3,For DVD Player,HD Xbox 360, for PS3

Digital Audio Decoder: Used 24-bit audio DSP, 96 KHz digital receivers, and 192 KHz/24bit ADC and DAC. Support Dolby Digital AC-3 Dolby Pro Logic, DTS, PCM and other digital audio format source decode, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output, will auto work with different amplifier and speakers to get different sound effects, easy to connect many entertainment devices which with optical and coaxial digital signal and analog output signals (such as: set-top boxes, HD players, Blu-ray DVD, for PS2, for PS3, XBOX360).

Features:

Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output
 The analog stereo (L/R) signals after digital processing chip handle convert it to analog 5.1 channel output
 Multi-channel audio input (SPDIF, Coaxial, Stereo), 2 x SPDIF input, 1 x Coaxial Input, 1 x Stereo
 Analog 5.1-channel or Stereo output
 USB 5V Output
 Dimension: 105*75*25 mm

Specifications:

Signal to Noise: 120db
 Degree of Separation: 85db
 Frequency Response: (20Hz ~ 20 KHz) +/- 0.5db
 Max Output Volt: 2.2V
 Power Supply DC/9V 1A, (outlay 110V~240V broadband convert DC9V Power)

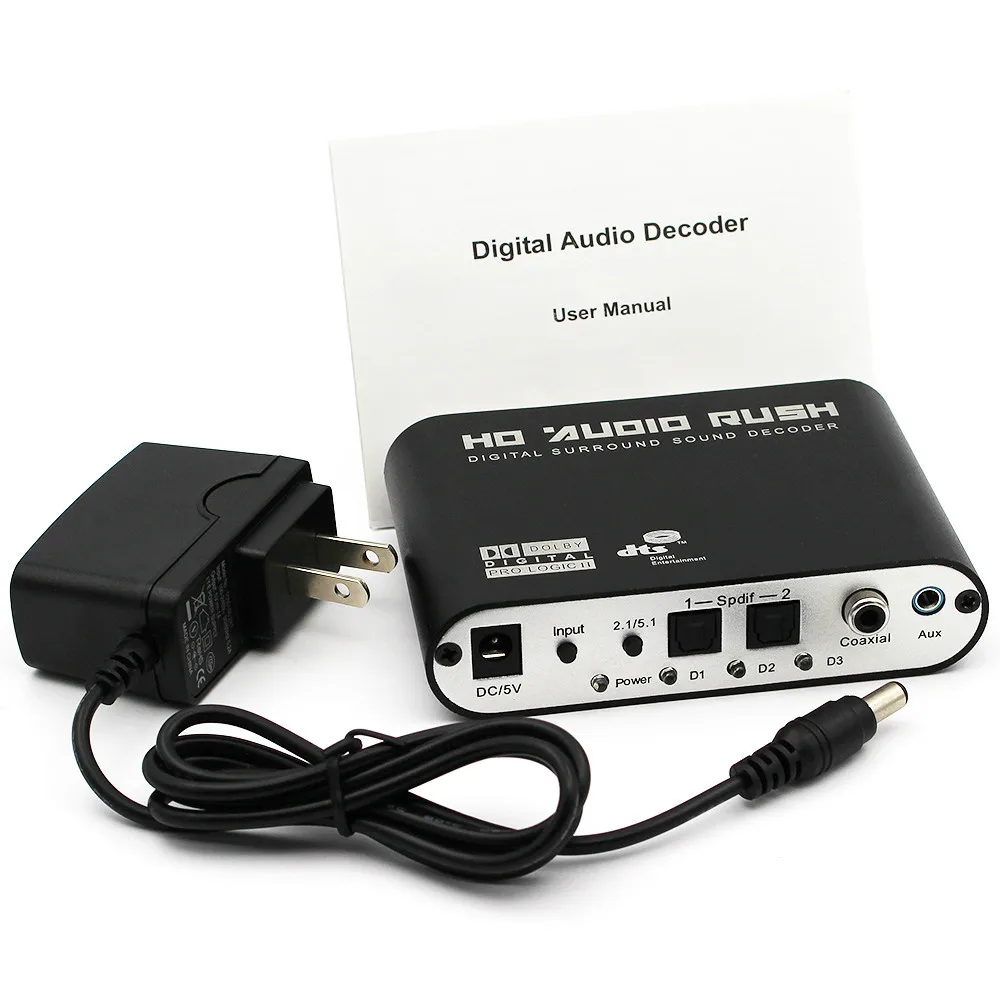

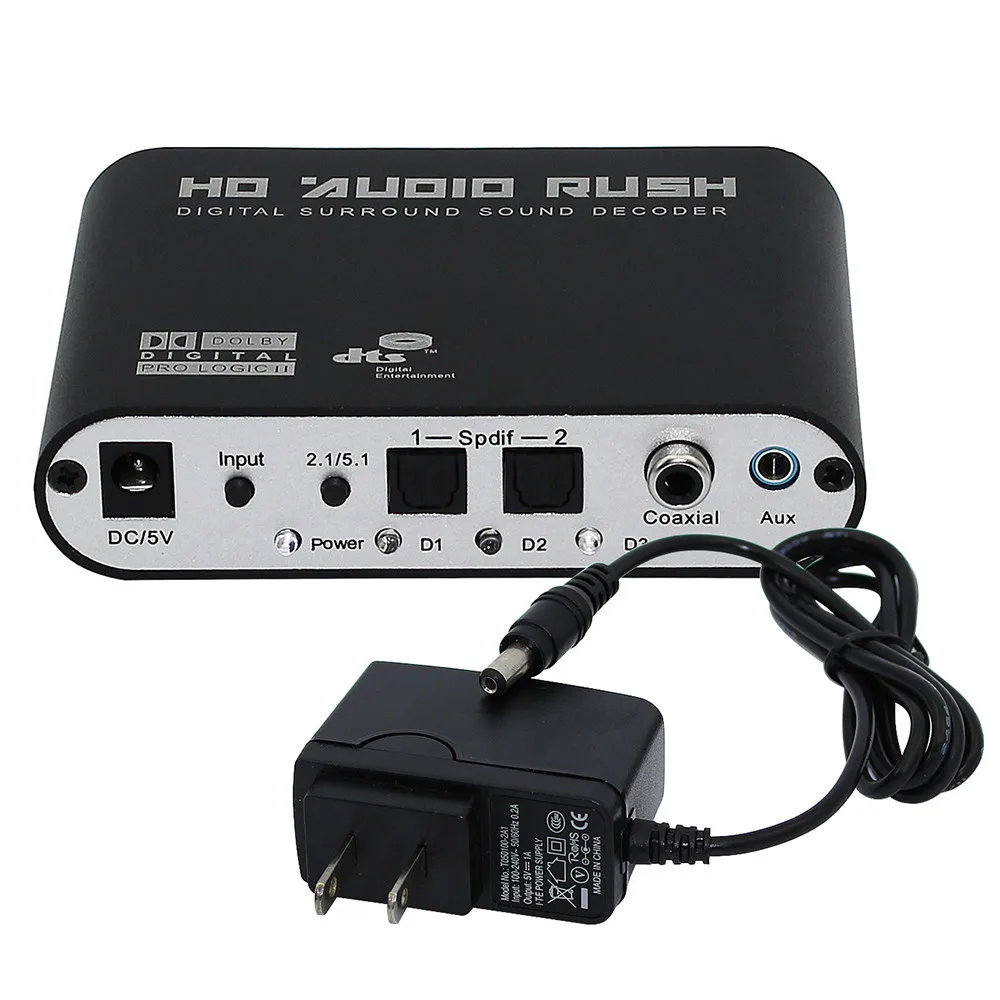

Package Includings:

1 x 5.1 Digital Audio Decoder
 1 x Power Adapter  (100-240V input/9V output)
 1 x User Manual

1x optical cable

Please note:

This product  is the Linux operating system ,the power on is very slow ,please wait 1 minutes or over

1 minutes .when the product is the process of power on ,it can not switch the button .

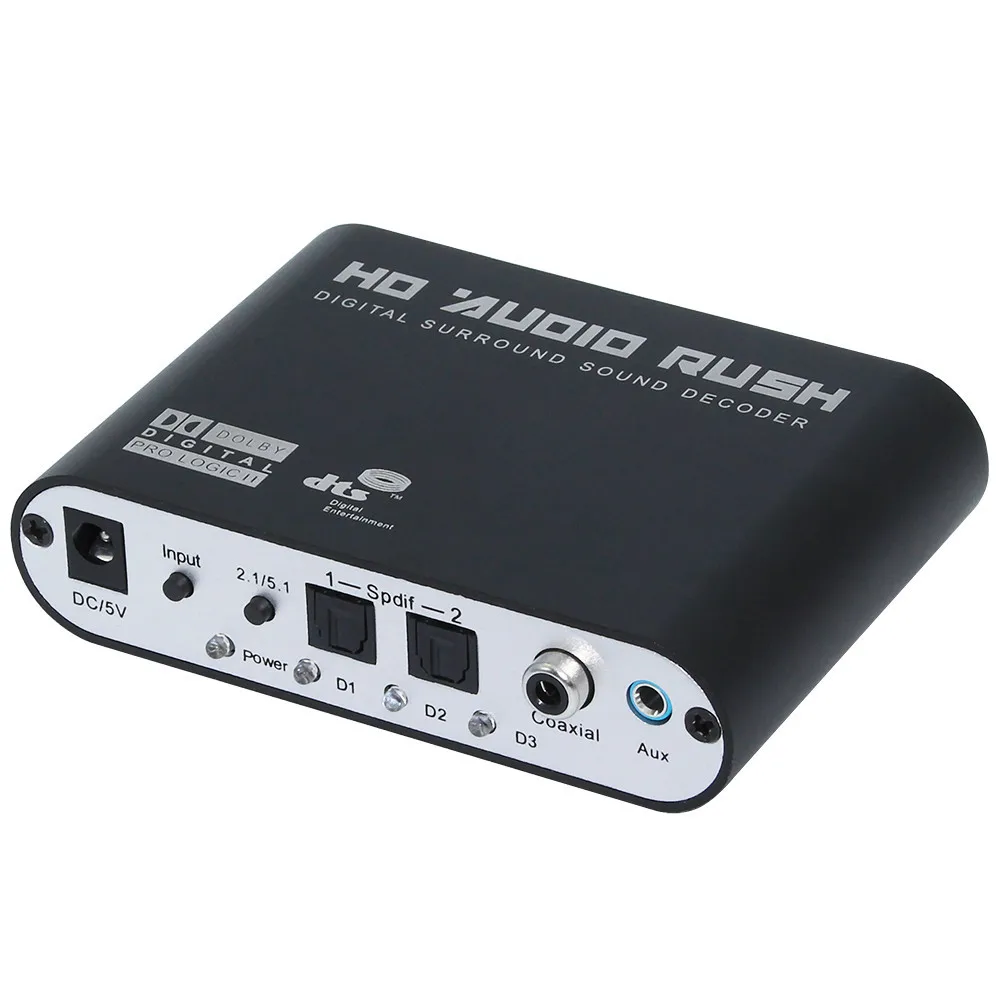

Interface Introduce:

A. Optical input interface: XBOX360, for PS3, STB, DVD player, Blue-ray DVD players, HD player

B. Coaxial input interface: can be connected to computer PC sound card or notebook coaxial output, high-definition players, set-top boxes, DVD player, etc.

C. AUX Input Interface: Connect to any group of LPCM stereo signals (such as computer audio, MP3 / 4 player audio)

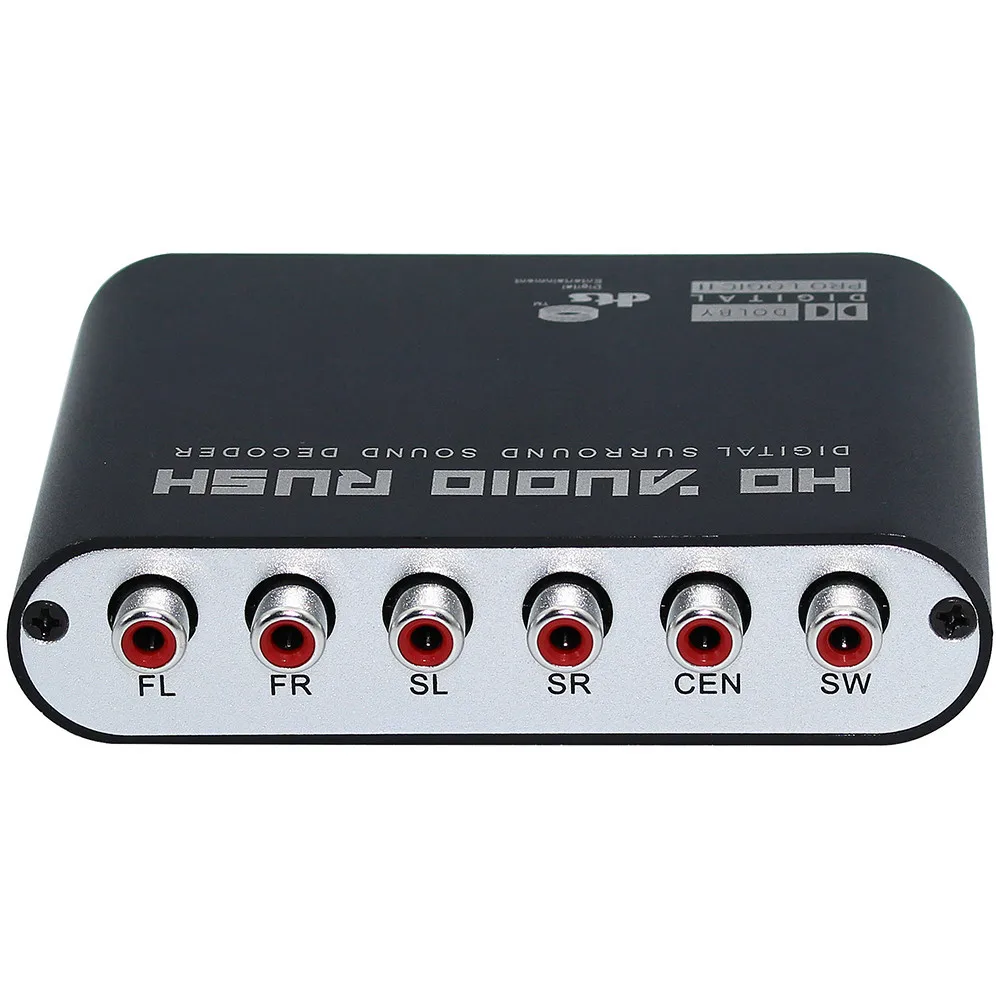

D. Three output channels: connect to home theater or a 5.1-channel power amplifier ((FL/FR if 2.1 channel)

Failure Check:

1. No sound output

A. Check whether the power 5.1 AUDIO DECODER power is on or not.

B. Check whether the input channels and output connections on the same channel (please use "S 'key to change, OPT1 --- D1 lights, OPT2-D2 lights, COX --- D3 lights)

C. Make sure the output device (for PS3/XBOX360/DVD Player / HD Player) is set to digital audio output.

D. Make sure the 5.1 amplifier power on, and switch to the 5.1 audio input, turn on the volume. If connect 5.1 headphones, make sure connect USB-power access, and turn on the volume.

2. I can hear noise

A. Make sure the cable is good

B. Are there unusual audio input

C. Check this noise is weather from 5.1 amplifier or headphones.
