Ceiling PIR Sensor motion Switch adjustable sensitivity delay distance Intelligent timing switch -White

• This product adopts imported internal PIR sensor to detect human body movement,
• when someone or larger animals into the range of induction,
• switch is automatically switched on,
• people don't leave the sensing range of activities, will continue through to; After the people left,
• switch delay shut down automatically.
• This product is high sensitivity, strong reliability,
• suitable for the warehouse, garage, workshop, such as corridor, absorb dome light to use.
• Dual power supply with the function of fire electronic intelligent switch is mainly used for multilayer,
• high-rise buildings, fire escape stairs.
• No fire line products or have fire line products no connection fire line also can work normally.

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.

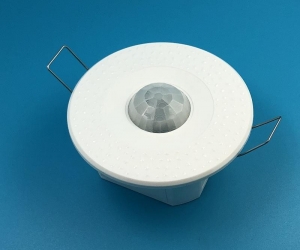

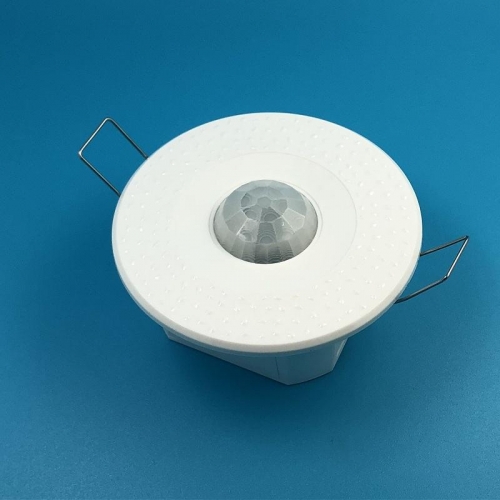

Flushbonding Ceiling PIR Sensor Switch

MODEL :JL-021B

Welcome to use our products, this product can be either embedded also can hang a wall installation. The company's products are all through strict test and aging test, the circuit is stable and reliable in quality.

Function characteristics and scope of application:

This product adopts imported internal PIR sensor to detect human body movement, when someone or larger animals into the range of induction, switch is automatically switched on, people don't leave the sensing range of activities, will continue through to; After the people left, switch delay shut down automatically.

This product is high sensitivity, strong reliability, suitable for the warehouse, garage, workshop, such as corridor, absorb dome light to use.

Dual power supply with the function of fire electronic intelligent switch is mainly used for multilayer, high-rise buildings, fire escape stairs. No fire line products or have fire line products no connection fire line also can work normally.

Specification:

Size: 94 mm * 76 mm

Working power:AC170V~250V,50/60HZ

method of induction: passive pyroelectric infrared.

Output: relay .

Delay time:15~300second.

Illumination:5LUX~5000LUX.

Induction distance:2~12m.

Sensor angle:110~140 degree.

Load range: all the lamps and lanterns, exhaust fan.

Load power:Incandescent≤1000W,Energy saving lamp,LED≤300W

Working temperature: - 20 ℃ - + 45 ℃

Adjust schematic diagram: Adjustable product at the time of debugging, please must use a Straight screwdriver gently adjust.

1.time 2.range 3.Illumination

1: on the left to reduce time, on the right to increase time;

2: on the left to reduce scope, on the right to increase scope ;

3: on the left nightwork, on the right daytimework

Sensing range:

Warning:

1,To turn off power when installation, must be installed by professional .

2,This switch can work normally after 60 seconds when electricity, it is infrared sensor preheat time .

3,Do not overload to use.
