HDMI to HDMI + Audio Exractor Signal Repeater HDMI 5.1 SPDIF Digital Audio Converter-Black

 HDMI to HDMI + Audio Exractor Signal Repeater HDMI 5.1 SPDIF Digital Audio Converter-Black

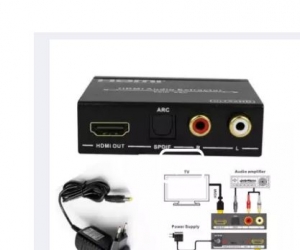

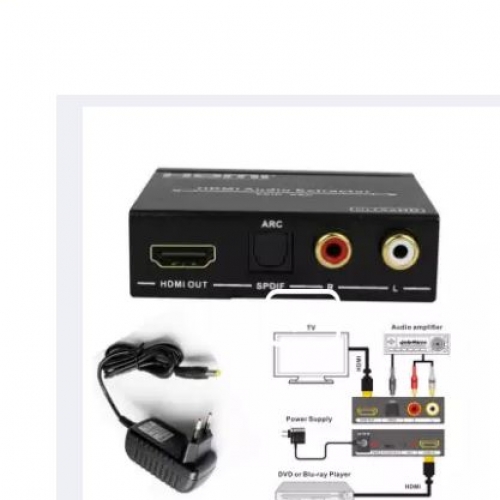

• HDMI OUT: This slot is where you connect an HDTV or monitor with an HDMI cable to display the input source.
• SPDIF Output: This slot is where you connect to an audio amplifier with a fiber optic cable .
• R: A Nalog Audio right channel output.
• L: A Nalog Audio left channel output.
• DC 5 V In : Connect the 5V DC into a block and the adapter to an AC outlet.
• Power Indicator: This red LED lights S when the device is connected to the power supply .
• EDID switch: Click this switch, select 2.0ch, 5.1ch, tv EDID to source.
• Arc key: P CVD this button to enable and disable the arc function.
• Arc LED: The red LED lights S when arc includes darkens when disconnected.
• HDMI input: TH Is the Slot is where you connect the HDMI output source from a DVD, PS3, set-top box or notebook.

Mini HDMI-HDMI + Audio Repeater increases analog stereo and Toslink digital audio output based on HDMI signal transmission. The audio signal can be easily connected to headphones or a digital audio power amplifier.

Ii . Special features

1. Supports up to 4K x 2K High resolution ;

2. Supports intelligent EDID and arc functions.

3. Support digital audio format : Dts-hd / Dolby-True HD / Lpcm7.1/ac3/DTS/DSD

HDMI Audio Repeater 1 pc.

5V1A DC Power Adapter1 pc.

Management Guide 1 pc.

Iv . Specifications

297 MHz frequency band [10.2 Gbit / s]

Log Ports 1 x HDMI female ports.

Output port 1 x HDMI female port, 1x TOSLINK, 1x RCA

HDMI audio output Pcm2, 5.1, 7.1ch, Dolby 5.1, dts5.1, d-TrueHD, dts-hd

Food 5 V / 1A DC (US / EU standards, ce / fcc / ul certified)

ESD protection Human Skin Care Product Model: ± 8KV (Air-Gap Discharge)

± 4kV (contact discharge)

Dimensions (mm) 60 (W) x 70 (D) x 20 (h)

Weight (g) 125 g

Operating Temperature 0˚c ~ 40˚c / 32˚f ~ 104˚f

Storage Temperature -20˚c ~ 60˚c / -4˚f ~ 140˚f

The V . Management control and functions
