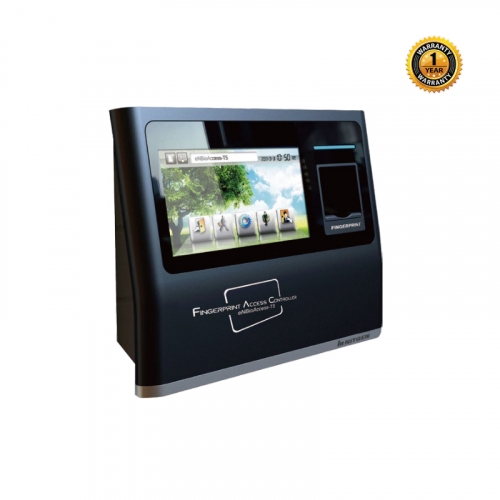

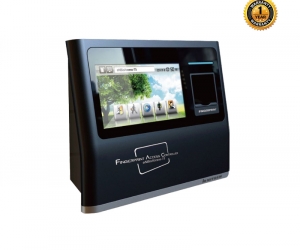

Nitgen t5 Access control and Time attendance Terminal
Location: Shyamoli-Dhaka
Rate this product!
4.3" TFT LCD, Touch Screen
- Fingerprint Image Quality Check
- Notice/Status bar
- Wallpaper with company logo
Superior Matching Engine
- 1st rank in FVC(Fingerprint Verification Competition)
Auto-on Function & Live Finger Detection
Built-in Camera
- Takes picture for every transaction with storage in server
USB Memory Slot
- Easy data transfer using USB memory stick
Function Key
- User-defined functions (F1~F4)
- Clock In/Clock Out/Absence/Return
Multifactor Authentication
- Fingerprint, RF card, Password
Multi Language support with Audio-visual indications
Built-in battery & PoE (Optional)
Centralized Biometric Access control on IP technology
Multi-processing functionality
- Normal authentication process under progress at background of terminal
 |
 |
 |
| CPU | S3C6410 (ARM11 667MHz) |
| Memory | 256MB DRAM / 256MB Flash |
| Display | 4.3" TFT LCD / Touch Screen |
| Sensor | Optical / 500 DPI |
| 1:1 Time | < 0.2 sec. |
| 1:N Time | < 1 sec.(4,000 templates) |
| Authentication Rate | FRR ~=0.1%, FAR ~= 0.001% |
| Template Capacity | 100,000 templates (2templates/1finger) |
| Log Capacity | 500,000 logs |
| Communication | TCP/IP, Wiegand In/Out(26/34bit) |
| Lock | Deadbolt, EM Lock, Door Strike, Automatic Door |
| Environment | -20~60 ℃ / < RH 90% |
| Certificate | KC, CE, FCC |
| Size (mm) | 192 x 156 x 55 (W x H x D) |
