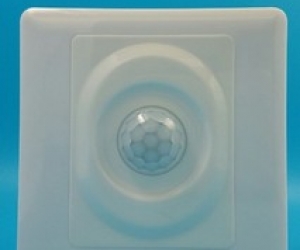

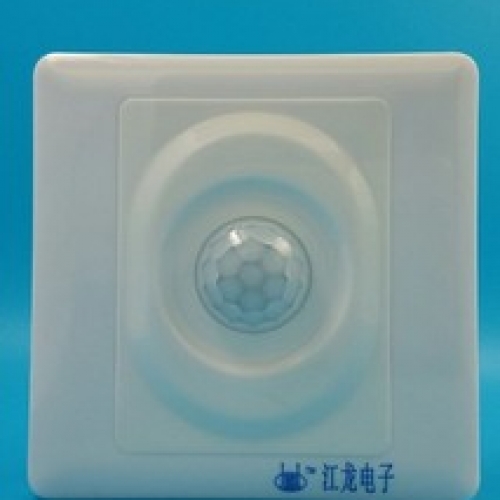

Pir motion sensor three-wire fire line suppy high quality switch 86mm white 25D

PIR  motion sensor switch operating instructions

                             Model:  JL-025D(Fire)

Welcome to use our products, this product can be either embedded installation. The company's products are all through strict test and aging test, the circuit is stable and reliable in quality.

Function characteristics and scope of application:

This product adopts imported internal PIR sensor to detect human body movement, when someone or larger animals into the range of induction, switch is automatically switched on, people don't leave the sensing range of activities, will continue through to; After the people left, switch delay shut down automatically.

This product is high sensitivity, strong reliability, suitable for the warehouse, garage, workshop, such as corridor, absorb dome light to use.

Technical Parameters:

Size: 86mm * 86 mm;

Working voltage:AC170-250V 50HZ;

Load power:Incandescent≤1000W,Energy saving lamp≤500W,LED≤300W;

Illumination:5LUX

Induction distance:5~8M

Delay time: 30second

Sensing angle:110~140 degree;

Ambient temperature: -20 ℃ ~ +45 ℃;

Load range: all the lamps ,exhaust fan;

Output: relay;

Method of induction: passive pyroelectric infrared;

Warning:

1. To turn off power when installation, must be installed by professional.

2. Do not overload to use.

3. This switch can work normally after 60 seconds when electricity, it is infrared sensor preheat time.

Sensing range:

Wiring diagram:
