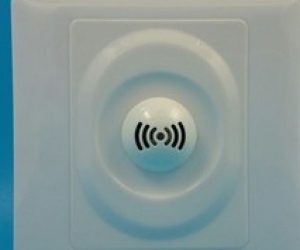

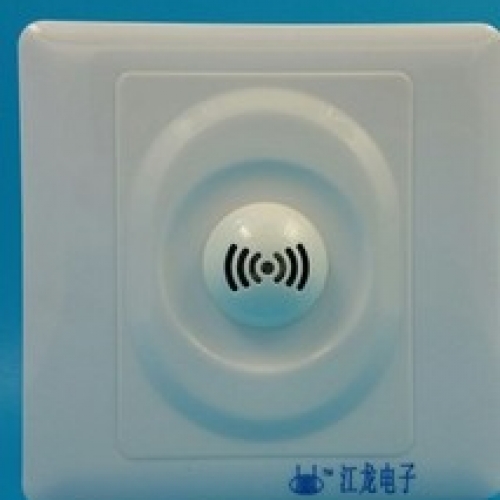

PIR Motion Sensor sw Sound and light-controlled energy-saving switch relay output Three line 86mm white fire control line

Sound and light-controlled delay switch operation instruction

                                  Model: JL - 042 Fire control line

Scope of application: applicable to the corridor, warehouse, balcony and other places of automatic to turn off the lights, do not apply to much noise at night place.

A. Product performance:

1. The energy conservation and environmental protection, low static power consumption, safe and reliable products.

2. The product USES the photosensitive control, with functions of automatic metering, can only work properly when dark.

B.Product technical parameters:

1. Working voltage: AC170-250 - v (50 Hz / 60 Hz)

2.load power, Incandescent lamp ≤1500 W,energy-saving lamp≤500W,LED≤300W

3. Sensitivity: 5 LUX± 2 LUX,

4. noise sensitivity: ≥50 dB ,

5. Delay time: 20-30s

6. Output mode: relay

C. installation note:

1. please do not charged operation, require professional installation.

2. Strictly prohibited use in the case of overload.
