PTZ IP CAMERA OUTDOOR 10X OPTICAL ZOOM FULL HD Support Any Brand NVR-White
Location: Elephant-Road-Dhaka
Rate this product!
1.Adopt high performance 1/1.8" SONY CMOS.
2.Support dual stream compression technology,up to 2MP super HD image effect.
3.Rotate 360°in horizontal direction，driven by exact engine，operate stably with Precise position-setting.
4.The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.
5.Built-in OSD. Several control protocols are compatible and Baud rate is adjustable;
6.Vertical 90°continuous monitoring after auto reversing 180°.
Parameter:
|
Model No . |
CSJ-NH4RP-200DH |
|
Signal model |
PAL/NTSC |
|
Image sensor |
1/1.8" SNOY CMOS |
|
Effective pixel |
1920*1080 |
|
Horizontal resolution |
1080P Lowest illumination |
|
Minimum illumination |
Color to B/W,Color:0.1Lux,B/W:0.01Lux |
|
S/N ratio |
>60dB(Enhanced) |
|
Backlight compensation |
On/Off |
|
White balance |
Auto |
|
Electronic shutter |
PAL:1/25~1/100000s NTSC:1/30~1/100000s |
|
Focus length |
5~50mm |
|
Optical focus |
10X |
|
Focus |
Auto / Manual / Push Auto , the use of high-performanceDSP to realize complete digit and ultra-high speed focus function |
|
Presets |
255 |
|
IR distance |
40m |
|
Patrol track |
4groups, each can record 200 actions |
|
Cruise track |
Total 30 presets can join cruise, can setting the presets' residence time |
|
Other scan |
Support Horizontal scan, deuce area scan, scan random |
|
Rotation range |
Horizontal 360°unlimted rotation, Vertical 90°,auto reversal |
|
Rotation speed |
Horizontal & Vertical Min 0.01°,Max 200°/S |
|
Video compression |
H.264 Main Profile encoding ; MJPEG / JPEG Baseline encoding |
|
Audio compression |
G.711, G.726 |
|
Primary stream |
1920 * 1080 , 25fps |
|
Secondary stream |
D1，VGA，640*360,568*320,CIF，QVGA，320*192 |
|
Video bit rate |
32Kbps-16Mbps continuously adjustable, support CBR / VBR |
|
Network protocol |
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、 DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP |
|
ONVIF support |
Support |
|
Power supply |
DC12V/2A |
|
Work environment |
-20°C~+50°C (select temperature control accessories), <95%RH |

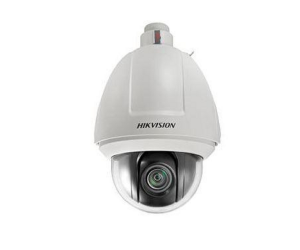

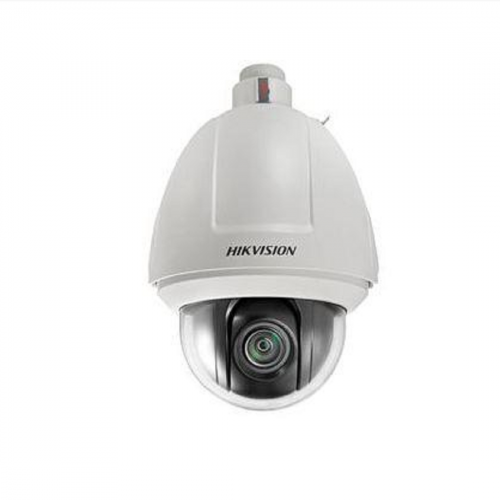

Camera Image:
