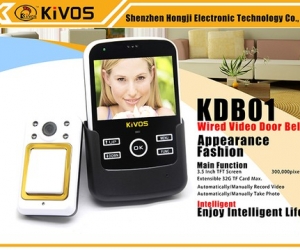

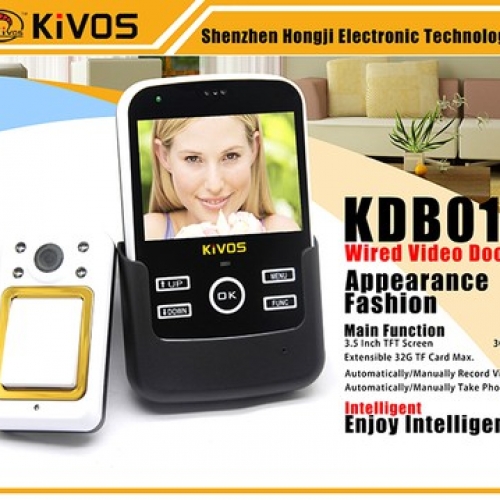

VIdeo doorbell,a new generation: 3.5 inch TFT screen.

Overview:

enjoy intelligent life choose kivos cat eye video doorbell,a new generation: 3.5 inch TFT screen.  300.000 pixels.  extensible 32g TF card max.

main function:

3.5 inch TFT screen

300.000 pixels

extensible 32g TF card max.

automatically/manually record video

automatically/manually take photo

 Technical details:

adopting refined craftwork,high level camera guard circle,scatch-resistant and fadeless logo screen painting,ABS and hardware accessories make the door phone fashionable and exquisite.

Outdoor camera parts:

300.000 pixels night

vision camera

4 IR lamps

door bell

optical sensor

screw hole

connector

double faced adhesive tape

flexible connection wire

24P connector

 Night vision：

outdoor camera adopts IR lamps with night vision detection distance within 1M.so the house-hold could clearly see the visitor at night when someone presses the doorbell.

 Indoor monitor features:

 the appearce of outdooe camera is fashional,it is simple but elegant,conforming to modern human's aesthetice.host machine is 3.5 inch TFT screen.extensible 32g TF card max so it's easy to operate.

Indoor monitor parts:

charge lamp

  buzzer

3.5 inch TFT screen

 power indicator

 up key

 menu key

down key

 fnction key

 wall charger

   ok&confirm

connect interface

    TF card

USB interface

ringing selection key

Installation of outdoor camera:

firstly thread 24p flexible wire through the peephole of the door,peel off the double-faces adhensive tape of the outdoor camera,and stick outdoor camera on the door.and then insert the matel side of flexible connector into the connection base and fix it and then tighten the screw bolt.

  outdoor camera is on the outside the door and host machine is onthe inside.the thickness of the door is:40-100mm,peephole diamater is:14-40mm.insert the host machine with battery into the holder,and long press"ok"key to turn on,then it can be normally used.

Advantages:

by using a wireless video door phone,you could easily see the visitors on big and bright screen of indoor monitors.no worries if only the elderly or kid is home.
