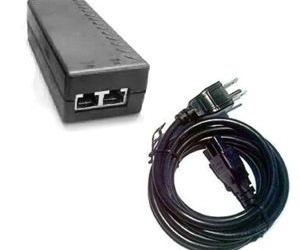

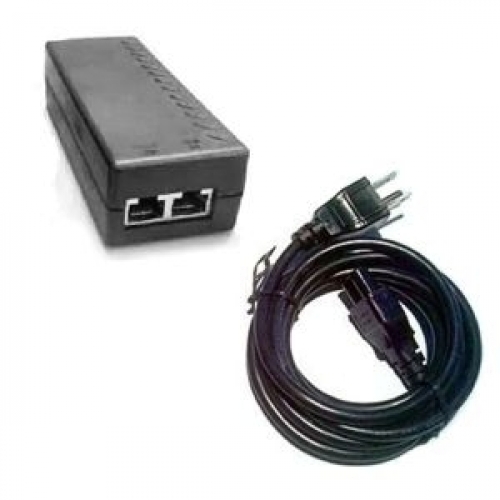

The POE-12V48 Power over Ethernet injector provides PoE power for a single IP camera or other device by "Injecting" DC power through the CAT5 Ethernet cable. This POE injector, also known as a PoE mid-span, connects via CAT5 Ethernet cable inline with your network switch or router. The POE-12V48 adapter will work with all POE enabled IP security cameras. It is compatible with equipment supporting the IEEE standard PoE pinout (Pins 4&5 Power + / Pins 7&8 Power -), 802.3 af. PoE injectors allow Ethernet, a common LAN (Local Area Network) protocol, to carry DC power along with data packets. This device takes AC 100-240V 50/60Hz input and outputs DC48V - 400mA or 19.2 watts. CCTV Camera Pros has found this POE injector works with all of the POE enabled IP cameras that we supply and virtually all cameras on the market.
Since the POE-12V48 POE midspan injector is a completely self-contained kit, a separate power supply and injector is not required. It features an impact resistant poly-carbonate body and includes a 3-prong detachable power cord.
POE-12V48 Power Injector Features
- Supplies PoE for one IP Camera
- IEEE802.3af PoE Standard Compliant
- Connects via CAT5 Ethernet cable inline (PoE Midspan)
- Works with all 12v PoE Cameras
- AC 100-240V 50/60Hz input
- Outputs DC48V / 400mA or 19.2 watts
A PoE Injector Kit offers several benefits to your wireless network deployments.
- Safety: Low-voltage power supply means less risk
- Simplicity: A single cable supplies power and network connection to each device
- Space: Only one set of wires to deal with saves space
- Ease: It's easier and faster to install new cameras and extend your network
- Less Labor: Eliminates the need to hire a skilled electrical contractor
- Reach: Ethernet cable can reach 100 meters or more
- Savings: Less labor, faster installs, and simpler design means cost savings
|
