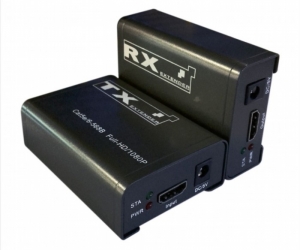

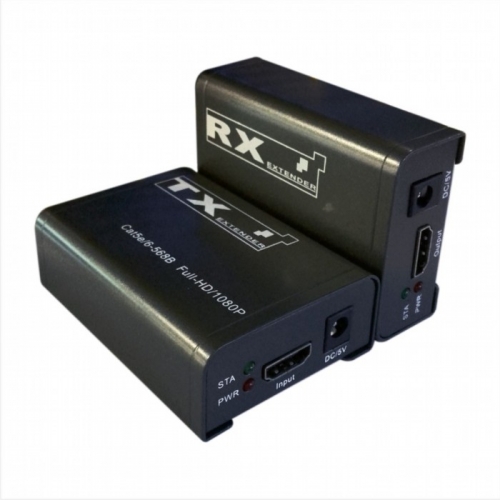

100m HD 1080P IR HDMI Extender 1x1 Splitter HDMI sender&receiver with Cat6 RJ45 ethernet cable with ir

Tk. 8,500 *,
*Warrenty : 1 year, Condition : Brand New
*Last Updated On : 5 years ago
*Status : In Stock

01772332000 , 02-47444040, 224461394
Seller:
ISSBD

ISSBD

Location: Elephant-Road-Dhaka

Rate this product!

Description

1.     Description





The HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.






2.     Features





  Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable;









l  Support video resolution up to 1920*1080@60Hz;

l  Support IR signal transmission;

l  Support over TCP/IP, one to many application with Ethernet switch;

l  Compliance with HDMI 1.3 and HDCP 1.2 standard;

l  High compatibility, can auto-match source and display device;

l  Built-in automatic adjustment system, make the image smooth, clear and stable;

l  Built-in ESD protection system;

l  Simple to install, plug and play;



3.   Specifications













Parameter

Description



Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080@60Hz

Connector

HDMI-A

Impedance

100Ω

IR

Interface

3.5mm earphone seat

Signal direction

Unidirectional

Signal type

Digital

IR frequency

38khz(standard) ;  20-60KHz (Can be customized)

Ethernet

Interface

RJ45

Transmission distance

CAT5e/6 - 120m

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

95*73*26mm

The warranty

1 year free warranty



Installation





1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,

2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,

3.Connect the HDMI output port of receiver to the display device with HDMI cable,

4.Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.
