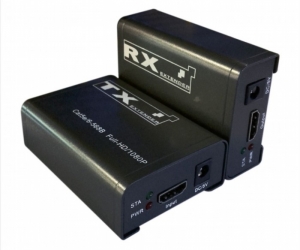

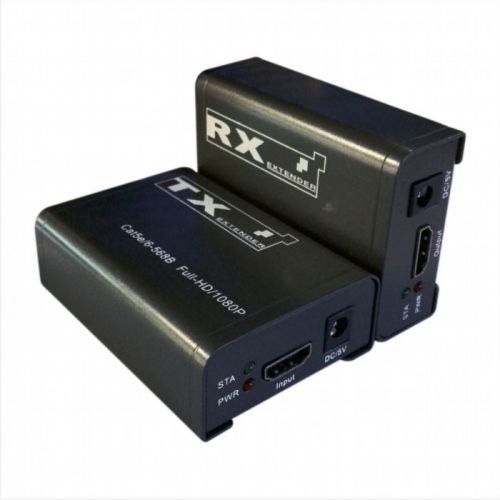

HDMI-Single CAT-HDMI Extender up to 60 meters (M-HD60A)

Item specifics

• Brand Name:mybox
• Model Number:M-HD60A
• color:silver

Product Description

The Extender use single cat-5E or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

l HDCP 1.2 protocol compliant

l Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

l Signal transmission :Single cat-5e or cat-6(recommended) cables up to 60 meters instead  of HDMI cables are connected between TX and RX Extender.

Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

LED indication: when power is supplied or device is working, LED relative to is light.

No loss of quality

Installs in minutes

Need DC5V/1.5A power supply

The accessories with the machines lists as picture:

1.two 5V Power Adaptors

2.one pc of Manual

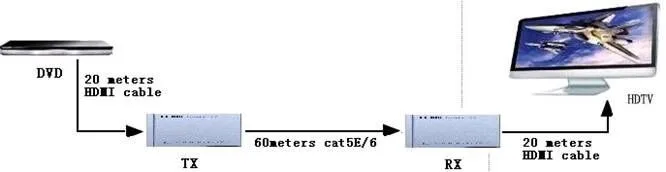

  Operating and Connecting:

1.          Connect one HDMI cable up to 20 meters between source device and TX Extender

2.          Connect one HDMI cable up to 20 meters between sink device and RX Extender

3.          Connect single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI  cables between TX and RX Extender

4.          Connect 5V power supply to the HDMICAT60RX&TX Extender

SPECIFICATIONS:

  Length of CAT-6 cable between Rx and TX…..……………….……………..Up to 60 meters

HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………165MHz

Max baud rate……………….…….………………….………….………………………4.95Gbps

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)

Input/Output HDMI cable distance………….……………..≤15m AWG26 HDMI standard cable

Max working current………………………………………………………………………...800mA

Power adapter format………...………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55°C)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….…………………………82x44x22 (mm)

Weight…..………………………………………………………..………………………………400g

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

1.    The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2.    All parts will be free from the strong shake, hit, fall.

3.    Touching the power adaptor with the wet hands is prohibited.

4.    Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.

5.    Pls turn the power off when the machine is not used for long time.

6.    Pls do not open the cover and do not touch the inside parts.

7.    Pls use the original factory power adaptor.

Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Packaging Details

• Unit Type: Pair
• Package Weight: 0.6kg (1.32lb.)
• Package Size: 23cm x 16cm x 7cm (9.06in x 6.30in x 2.76in)
