CCTV Camera BNC S-Video VGA to Laptop Computer PC VGA Monitor Converter Adapter Box

Product Introduction:

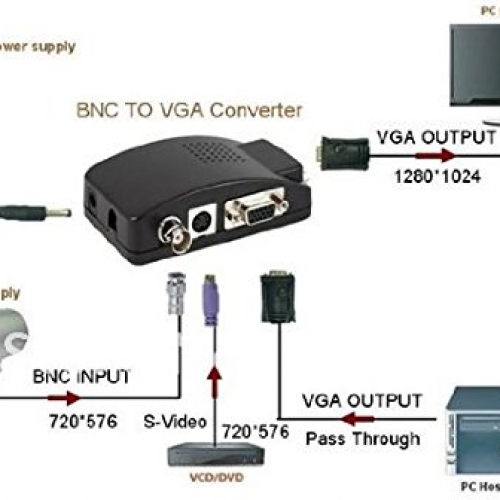

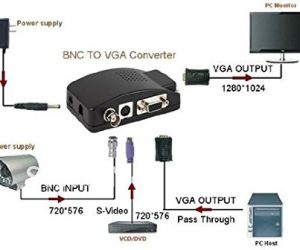

This is VGA/S-video/BNC to VGA converter switch. It has VGA, S-video and BNC input with VGA output, by which it enable the video in DVD/DVR, CCTV (closed-circuit television), camera, etc to be displayed on PC monitor or LCD. Single button for easy switch between different input source.

Product Features:

VGA, 4 pin S-video, BNC in; VGA out.
Convert VGA/S-video/BNC to VGA.
Enable DVD/DVR, CCTV (closed-circuit television), camera, etc to be displayed on PC monitor or LCD.
Single button for easy switch between different input source.
"Input", "Menu", "Freeze/+", "Resolution/-" function button.
Adjustable input, brightness, contract, saturation and hue.
Supported VGA output resolution: 800 x 600@60HZ, 800 X 600@75HZ, 1024 x 768@60HZ, 1280 x 1024@HZ.
PAL/NTSC auto-detective.
Image-freezing function.
OSD (On-Screen-Display) function.
Auto-save settings and working status when power off.

Specification:

Product Type:VGA/S-video/BNC to VGA Converter Switch
Interface Type: VGA, 4 pin S-video, BNC in; VGA out
Power Supply: DC 5V 1A
Dimension: 10 X 6.1 X 2.6 cm
Weight: 0.09 Kg
Color: Black

Package included:

1 x VGA/S-video/BNC to VGA Converter Switch
1 xWINGONEER® S-Video cable
1 x 5V AC Adapter
1 x User Manual
