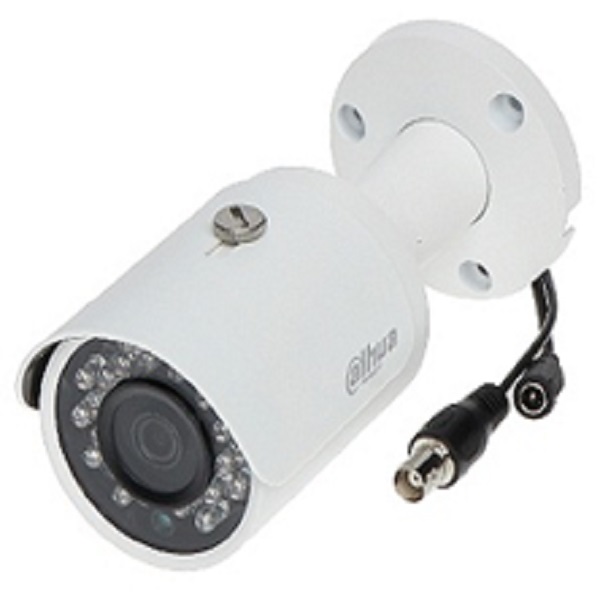

DAHUA HAC-HFW-1200SP HDCVI IR BULLET

Dahua HAC-HFW 1200SP 2MP HDCVI IR Bullet Camera * The parameters and datasheets below can only be applied to 1200-S3A series > Max 30fps@1080P > HD and SD output switchable > 3.6mm fixed lens (6mm optional) > Max. IR length 30m, Smart IR > IP67, DC12V Camera Image Sensor 1/2.7″ CMOS Effective Pixels 1920(H)×1080(V), 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 30m (98feet) IR On/Off Control Auto / Manual IR LEDs 18 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (6mm Optional) Max Aperture F2.0 Angle of View H: 87.5°(54.7°) Focus Control N/A Close Focus Distance 900mm (2000mm) 35.43” (78.74”) DORI Distance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. DORI Definition Distance Detect 25px/m (8px/ft) 3.6mm: 53m(175ft) 6mm: 80m(262ft) Observe 63px/m (19px/ft) 3.6mm: 21m(70ft) 6mm: 32m(105ft) Recognize 125px/m (38px/ft) 3.6mm: 11m(35ft) 6mm: 16m(52ft)
