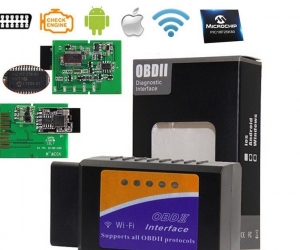

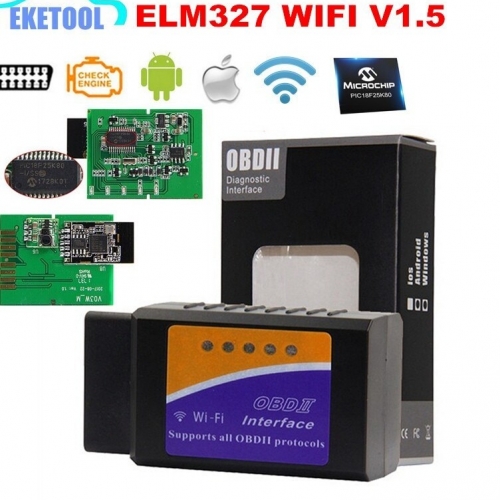

Car OBD2 Scanner tool Wifi V1.5

1. Wifi Connection: Support Android Smartphones, iOS (For (iPhone, iPad, iTouch, Mac) and PC.

2. Protocol Support: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM and Works with most OBD-II compliant vehicles.

3. Vehicle Coverage: Works on all 1996 to Now OBD-II compliant vehicles (Including VPW, PWM, ISO, KWP 2000, CAN Protocol).

4. Function: Read diagnostic trouble codes(over 3000 generic code definitions in the database); Clear trouble codes and turn off the MIL (\"Check Engine\" light); Display current sensor data.

5. Display Current Sensor Data Including: Display current sensor data, including: Engine RPM,Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim,Long Term Fuel Trim,Intake Manifold Pressure,Timing Advance,Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,

Oxygen sensor voltages/associated short term fuel trims,Fuel System status,Fuel Pressure etc.

Description:
Function: Read diagnostic trouble codes(over 3000 generic code definitions in the database); Clear trouble codes and turn off the MIL (\"Check Engine\" light); Display current sensor data.
Display current sensor data, including: Engine RPM,Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim,Long Term Fuel Trim,Intake Manifold Pressure,Timing Advance,Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,
Oxygen sensor voltages/associated short term fuel trims,Fuel System status,Fuel Pressure etc.
OBD-II Protocols Support:
ISO15765-4 (CAN)
ISO14230-4 (KWP2000)
ISO9141-2
J1850 VPW
J1850 PWM
Specification:
Item type: ELM327 Wifi Car Diagnostic Scanner
Processor: ELM327 V1.5
Chip: PIC18F25K80
Hardware Version: ELM327
Software Version: OBD2 ELM 327
Special Features: Wifi Connetion
Operation System Support: Support Android Smartphones, iOS (For (iPhone, iPad, iTouch, Mac) and PC.
Vehicle Coverage: Works on all 1996 to Now OBD-II compliant vehicles (Including VPW, PWM, ISO, KWP 2000, CAN Protocol).
Output Interface: USB
Working Voltage: 12V
Working Current: 45mA
Material: Plastic
Package included:
1x ELM327 Wifi V1.5 Car Diagnostic Scanner
1x CD-ROM
Please contact us first when you have any problem,we will give you the best service and solve the problem ASAP.Thank you so much.
