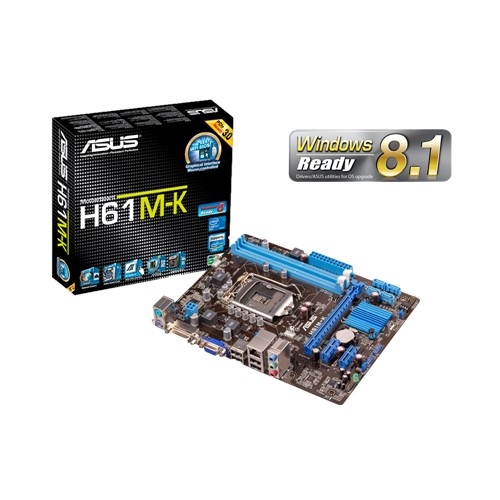

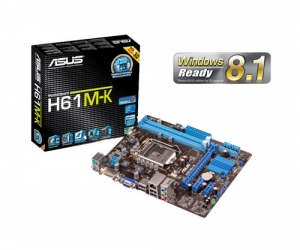

Asus H61M-K DDR3 3rd Gen.LGA1155 Socket Mainboard (VGA)
Location: Jatra-Bari-Dhaka
Rate this product!
Additional Information
| Model | Asus H61M-K |
| Chipset | Intel H61 |
| Generation | 3rd |
| Sockets Supported | LGA1155 |
| Supported CPU | 3rd Gen. Intel Core i7/ i5/ i3 Processors |
| Memory Slot | 2 |
| Memory Max. | 16GB |
| Memory Type | DDR3 DIMM |
| Memory MHz | 1333/1066MHz |
| Memory Channel | Dual |
| Storage Interface | 3Gb/s |
| SATA Port | 4 x SATA |
| Form Factor | uATX |
| Graphics Chipset | Integrated Graphics |
| PCI Express Slot | 1 x PCI Express 3.0/2.0 x16, 2 x PCI Express 2.0 x1 |
| LAN Chipset | Realtek 8111F |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| VGA Port | 1 |
| DVI Port | 1 |
| USB Port | 8 x USB2.0 |
| BIOS Model | UEFI BIOS |
| BIOS Version | PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0 |
| Audio Chipset. | Realtek ALC887 High Definition Audio |
| Audio Channel | 8 |
| BIOS Type | 1 x 64 Mbit Flash ROM |
| Optane Memory Support | No |
| Warranty | 3 year |
Details
Model - Asus H61M-K, CPU Sockets - LGA1155, Chipset - Intel H61, Supported CPU - 3rd Gen. Intel Core i7/ i5/ i3 Processors, Memory Type - DDR3 DIMM, Memory MHz - 1333/1066MHz, Memory Channel - Dual, Memory Slot - 2, Memory Max. - 16GB, Graphic - Integrated Graphics, PCI Express Slot - 1 x PCI Express 3.0/2.0 x16, 2 x PCI Express 2.0 x1, Storage Interface - 3Gb/s, LAN Chipset - Realtek 8111F, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC887 High Definition Audio, Audio Channel - 8-Channel, USB Port - 8 x USB2.0, VGA Port - 1, DVI Port - 1, SATA Port - 4 x SATA, BIOS Type - 1 x 64 Mbit Flash ROM, BIOS Model - UEFI BIOS, BIOS Version - PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, Form Factor - uATX, Warranty - 3 year
