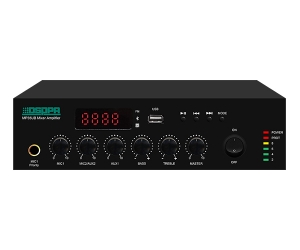

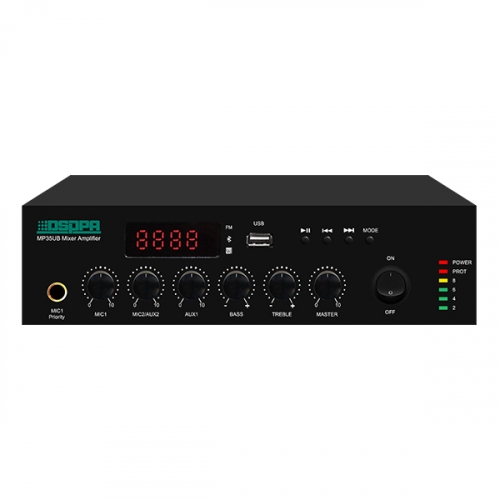

MP35UB 35W-60W Mini Digital Mixer Amplifier with USB & Bluetooth
Location: Shyamoli-Dhaka
Rate this product!
MP35UB is 1.5U designed Mini Digital amplifier with USB/FM and Bluetooth. The Speaker output is 70V/100V and 4-16Ω available, 3 Aux input, Min1 is 6.3mm jack in front panel and Mic2 is XLR in rear panel, Phantom power available for Mic2. Individual volulme control for each Mic and Aux, also provide Bass and Treble control. what's more, it also has EMC singal input for emgerency situation. This product can be calledmini digital amplifierorbluetooth mini amp.
|
Model |
MP35UB |
MP60UB |
|
Description |
PA Amplifier with USB/SD & FM & Bluetooth |
|
|
Rated power |
35W |
60W |
|
Speaker Outputs |
100V or 70V & 4Ohms-8 Ohms-16 Ohms |
|
|
Connector |
Mic1 input by unbalance 6.3mm phone jack MIC 2& MIC3 balance XLR socket Line1-2 inputs by RCA; Line output by RCA
|
|
|
Attenuation |
Microphone1-3, line1-2 and Mp3/FM, bass/treble and master |
|
|
MIC1 input sensitivity |
5mV |
|
|
MIC2 input sensitivity |
5mV |
|
|
MIC3 input sensitivity |
5mV |
|
|
AUX1 input sensitivity |
350mV |
|
|
AUX2 input sensitivity |
350mV |
|
|
EMC input sensitivity |
350mV |
|
|
MIC frequency response |
180Hz～10kHz（±3dB） |
|
|
AUX frequency response |
70Hz～16kHz（±3dB） |
|
|
Noise |
<5mV (4 ohm load output terminal) |
|
|
THD |
<1% 1KHz |
|
|
Protection |
Short-circuit, clip, overload and high temp protection |
|
|
Treble adjustment |
10dB（±2） |
|
|
Bass adjustment |
10dB（±2） |
|
|
Rated power Supply |
AC~110-220V |
|
|
Rated outpu voltage |
35W/4Ω, AC220V |
60W/4Ω, AC220V |
|
Priority |
EMC > MIC1 > others |
|
|
Machine size(L×W×H) |
247*198*66mm |
|
|
Packing size |
343*302*121mm (1PS) |
|
|
Maximum packing size |
630*355*283mm (4PS)
|
|
|
Net Weight |
2.55kg |
2.6kg |
|
Gross Weight |
3.2Kg (1PS) |
3.25Kg |
