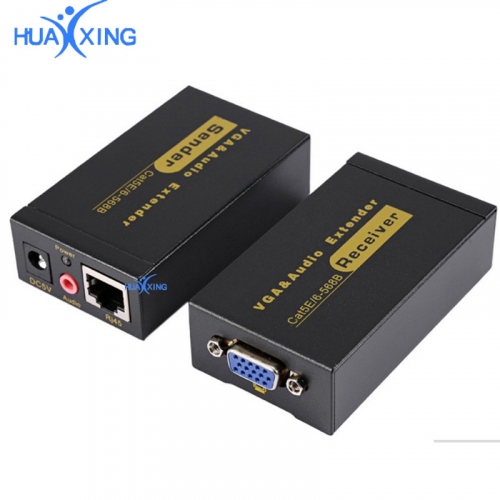

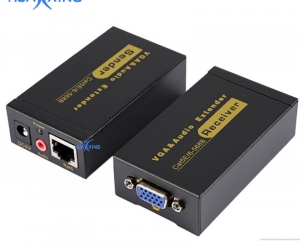

VGA extender 60m 100m via single CAT 5e/6 by rj45 VGA extender 120m over tcp/ip
Location: Elephant-Road-Dhaka
Rate this product!
good quality VGA extender 60m 100m via single CAT 5e/6 by rj45 VGA extender 120m over tcp/ip
VGA extender, applying double cable, is an ideal high quality video transmission device, suitable for LCD, Plasma, screen wall indoor/outdoor media exhibition.
1. Use UTP cable to extend VGA & Audio signal up to 100m
2. provider a VGA interface on the transmitter for using locally
3. using single CAT5/CAT5E/CAT6 cable to extend signal, save cost
4. supporting video & audio extending together
5. Software free, pure hardware design, support Plug & Play
6. the video & audio signals on the receiver are Real-time
7. Crisp clear VGA images & strong ability for anti-jamming
8. Can cascade operation for increase VGA outputs
9. Support MS-DOS,Windows,Linux,Unix,Novell
10. Use the high grade CMOS chip, accommodate to wide temperature range
11. Anti-thunder and antijamming index:withstand air-discharge 15KV, contiguity-discharge 8KV
|
Size: |
108 mmx94mmx30mm |
|
Weight: |
0.5KG |
|
input connector: |
HD15PIN(VGA) |
|
output connector: |
HD15PIN(VGA) |
|
local output: |
HD15PIN(VGA) |
|
bandwidth: |
300MHz(-3 dB) |
|
|
0-10MHz +0.1dB |
|
|
0-130MHz +6dB to -0.8 dB |
|
input level range: |
0.5-2.0Vp-p |
|
input level error: |
less than 3mV |
|
input impedance: |
75Ω |
|
output impedance: |
75Ω |
|
echo ullage: |
-30dB@5MHz |
|
Max DC compensation: |
±5mV-0 |
|
SNR: |
60dB |
|
Connector standard: |
HDB15,RJ45 |
|
Video standard: |
VGA,SVGA,XGA,SXGA,UXGA,LCD |
|
Cable standard: |
cat5, cat5e, cat5 UTP cable and cat5e is suggested |
|
Power adapter: |
DC12V/1A |
| item | Qty. | Remark | |
| VGA Extender 60m | TX 1 pc + RX 1pc | Support 1080p 3D | |
| Power | 2 pc | AC 9V (optional) | |
| User Manual |
1 pc | EN |
