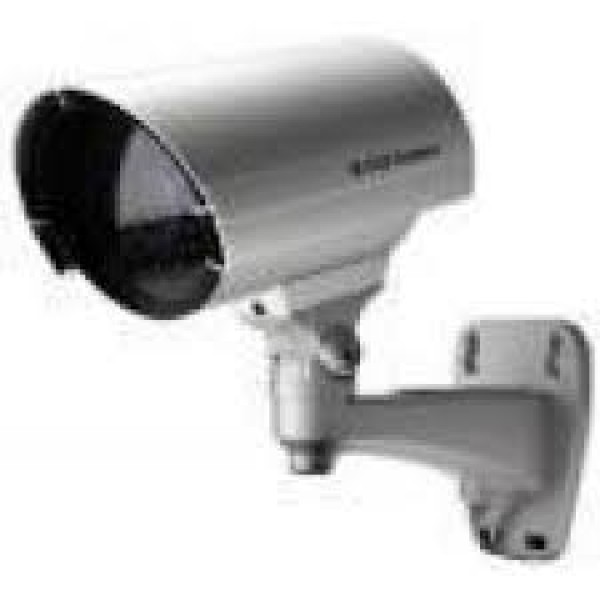

Avtech KPC 148 ZEP IR 520TVL CCTV Camera

Pick up Element: 1/3" HR color CCD image sensor

Number of Pixel: 768(H) x 494(V) <NTSC> / 752(H) x 582(V)) <PAL>

Resolution: 520 TV lines

Minimum illumination: 0.3 Lux / F2.4, 0 Lux (IR ON)

IR LED: 35 units

IR Effective Range: Up to 35 meters

S/N Ratio: More than 48dB (AGC off)

Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.

Lens: f6.0mm / F2.0

Lens Angle: 54 degrees

White Balance: ATW

AGC: Auto

IRIS Mode: AES

IP Rating: IP67

Video Output: 1.0Vp-p composite, 75Ω

Operating Temperature: 0°C~40°C

Power Source (±10%): DC12V / 1A

Current Consumption (±10%): 90mA (IR OFF), 590mA (IR ON)

Dimensions (mm)**: 115.6(O) × 216.4(H)
